ZLP Series Electric Gondola for Building Facade Work
Product Introduction
Electric suspended platforms are a type of modern aerial work platform widely used in high-rise building exterior wall construction, curtain wall installation, painting, cleaning, and maintenance. Supported by a roof-mounted suspension mechanism, the platform is driven up and down by an electric hoist, providing workers with a safe, stable, and efficient working environment.
System composition

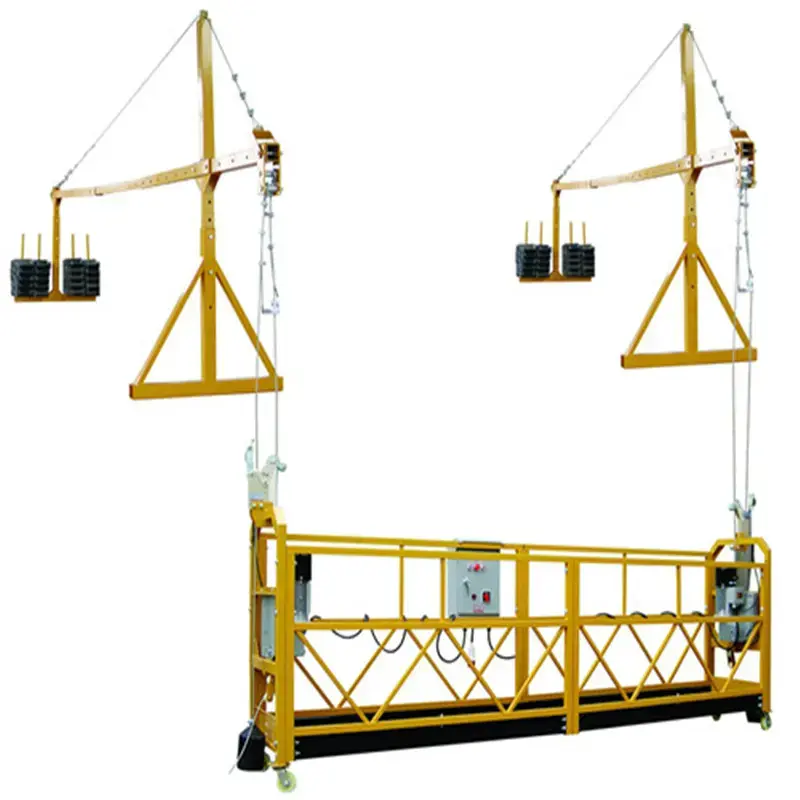

Electric suspended platforms used in construction typically consist of a work platform, support frame/guardrail, suspension system, hoist, safety lock, electrical control box, safety rope, and wire rope. Their scientifically designed structure makes the product easy to assemble and operate.
Product Features
High Safety Performance – Equipped with dual safety locks and overload protection for secure operation.
Durable Structure – Made of high-strength steel or aluminum alloy with anti-corrosion surface treatment.
Easy Assembly – Modular design allows quick installation and convenient maintenance.
Stable Lifting – Electric hoist ensures smooth, steady, and low-noise operation.
Flexible Customization – Voltage, platform length, and material can be customized.
Wide Application – Suitable for façade works, glass installation, and exterior cleaning.
Common electric suspended platform models (ZLP series)
Model |
Rated load |
Platform Length |
Speed increase |
Hoist Model |
Motor power |
Main materials |
Typical applications |
|
ZLP250 |
250 kg |
2.5 m |
9–11 m/min |
LTD2.5 |
0.8 kW × 2 |
Steel/ Aluminum Alloy |
Minor repairs and decorations |
|
ZLP500 |
500 kg |
5.0 m |
9–11 m/min |
LTD5.0 |
1.1 kW × 2 |
Steel/ Aluminum Alloy |
Exterior wall coating, small curtain wall |
|
ZLP630 |
630 kg |
6.0 m |
9–11 m/min |
LTD6.3 |
1.5 kW × 2 |
Aluminum alloy / steel |
The most common general-purpose type (exterior walls, cleaning, etc.) |
|
ZLP800 |
800 kg |
7.5 m |
8–10 m/min |
LTD8.0 |
1.8 kW × 2 |
Steel/ Aluminum Alloy |
Curtain wall installation, large-area decoration |
|
ZLP1000 |
1000 kg |
7.5–10 m |
8–10 m/min |
LTD10 |
2.2 kW × 2 |
Steel structure |
Heavy-duty construction, bridge and chimney maintenance |
|
Other optional models and features
In addition to the standard ZLP series, different manufacturers also offer customized models or enhanced versions to meet specific construction needs.
For example:
ZLP630A / ZLP630B: Both have a 630kg load capacity, but type A is a steel structure platform, while type B is an aluminum alloy platform, offering lighter weight and better corrosion resistance.

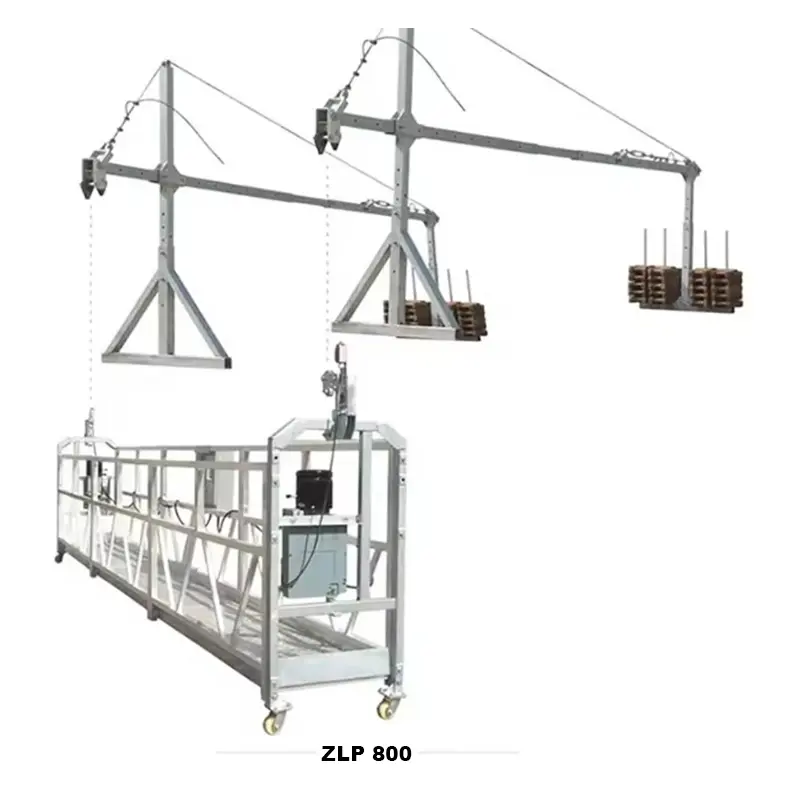

ZLP800A / ZLP800B: Similar in structure, differing in materials and surface treatment.

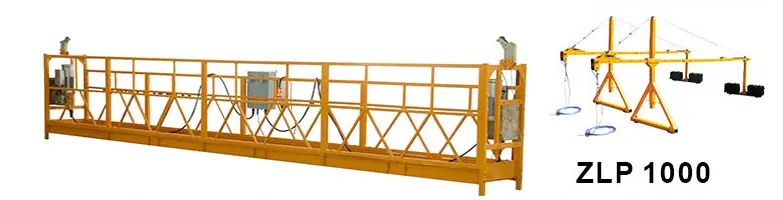

ZLP1000 Extended Type: Extended platform (up to 10 meters), used for bridge or large facade operations.
Customized Platforms: Length (2–10 meters), voltage (220V/380V), color, painting, hot-dip galvanizing, etc., can be adjusted according to customer requirements.

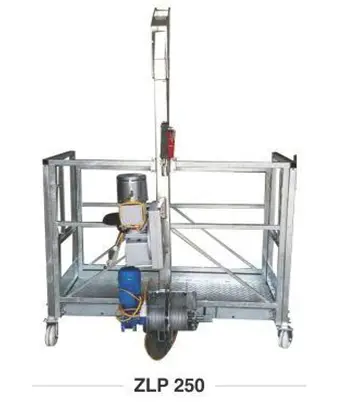

ZLP250 Electric Suspended Platform
The ZLP250 Electric Suspended Platform is a lightweight aerial working system with a 250 kg rated load, ideal for small-scale façade maintenance, window installation, and exterior painting. Its compact design and easy assembly make it perfect for projects requiring flexible, safe, and efficient access at moderate heights.

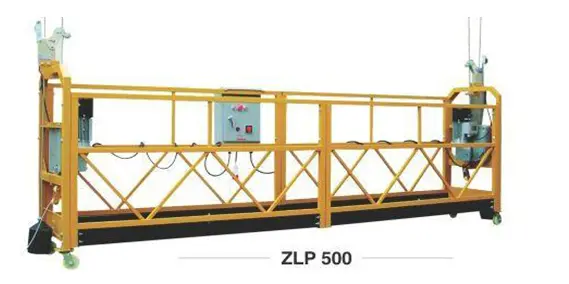

ZLP500 Electric Suspended Platform
The ZLP500 Electric Suspended Platform offers a 500 kg rated load capacity, designed for façade decoration, exterior wall painting, and small to medium-scale construction projects. It provides stable lifting performance, easy installation, and enhanced safety, making it an ideal choice for efficient high-altitude operations.
ZLP630 Electric Suspended Platform
The ZLP630 Electric Suspended Platform is the most popular model in the ZLP series, featuring a 630 kg rated load and a durable aluminum or steel structure. It is ideal for façade construction, glass curtain wall installation, exterior wall painting, and building maintenance. With reliable hoisting performance and advanced safety locks, it ensures stable, efficient, and secure operation at height.
