Zhuozhan Ringlock Scaffolding – Smart Solutions to Save Time, Labor, and Costs

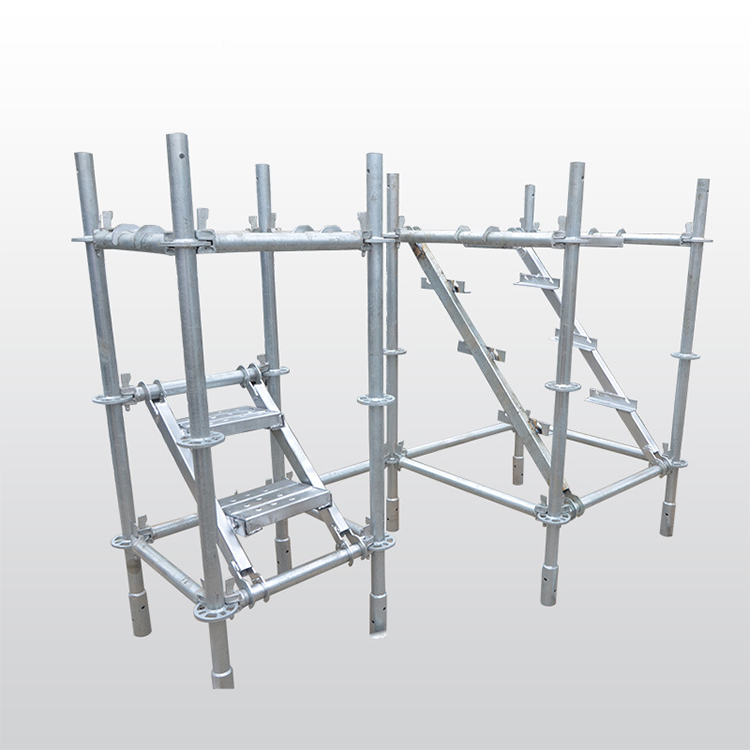

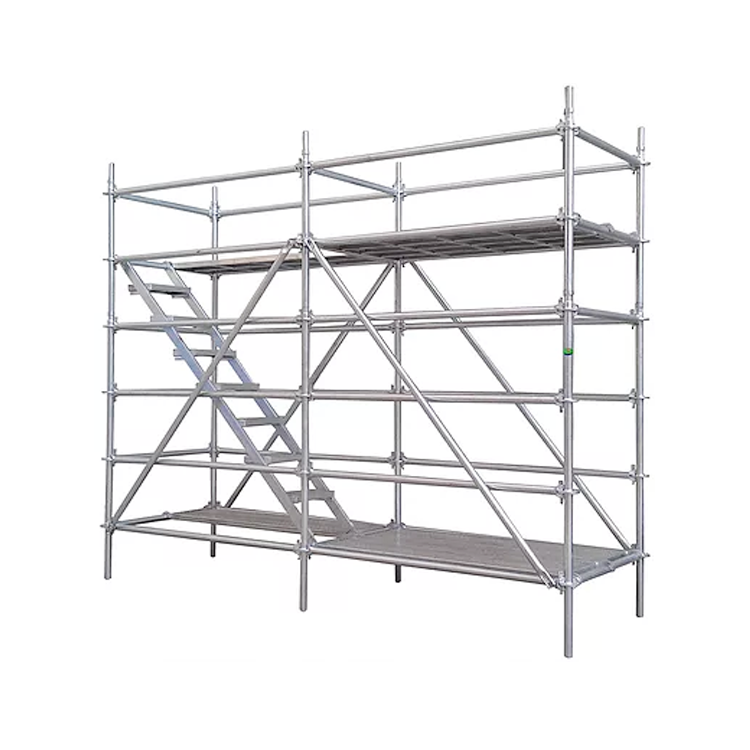

Product Overview
Zhuozhan’s ringlock scaffolding helps contractors save time, labor, and money across diverse projects worldwide, offering fast assembly, high load capacity, and durable galvanized finishes. It’s engineered to perform in construction, industrial maintenance, bridges, and event staging, delivering safety and long-term value on every jobsite.
Pain Point 1 – Save Labor Costs

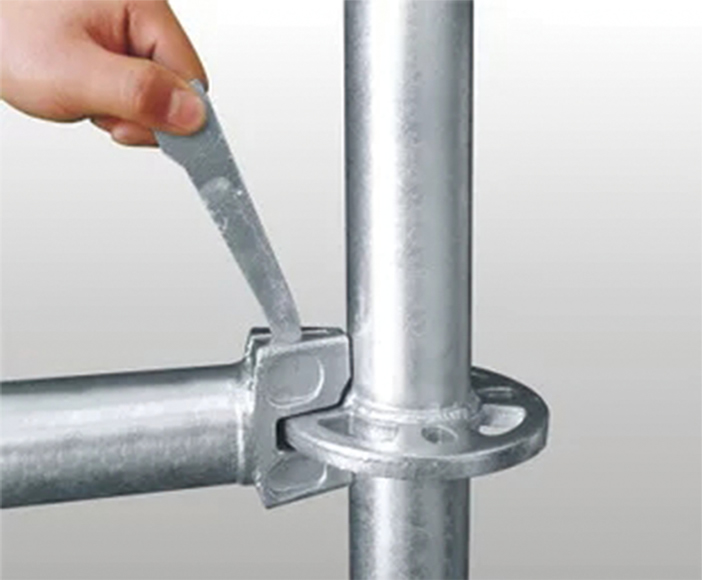

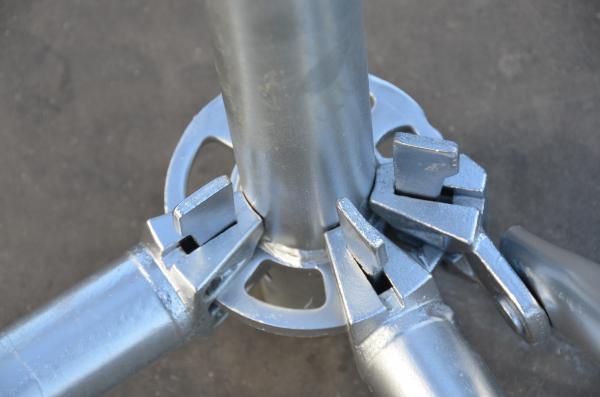

Cut Labor Costs by 30% with Quick-Lock Technology
Each node takes ≤15 seconds to build
Saves 30–40% labor compared to the fastener system
One worker can install what used to require three.
Pain Point 2 – Fast Turnaround Across Projects
Fast Assembly for Tight Deadlines and Multiple Sites
One system is applicable to multiple projects
Universal parts, less inventory pressure
Also applicable to leasing customers, reducing idle costs
Pain Point 3 – Global-Ready for All Environments
Built to Withstand Harsh Environments Worldwide
Optional Q235 / Q345 / Q355
Hot-dip galvanized layer optional 40μm~120μm
Can be used in salt spray, rainy season, and high temperature sites
Provide EN12810/12811 certification
From tropical storms to coastal corrosion, Zhuozhan stands strong.
Pain Point 4 – Investment You Can Trust
Proven ROI: Why Buying Beats Renting
3-year ROI comparison table
Real case: A customer saved $18,000 in three years
Technical Data Section
|

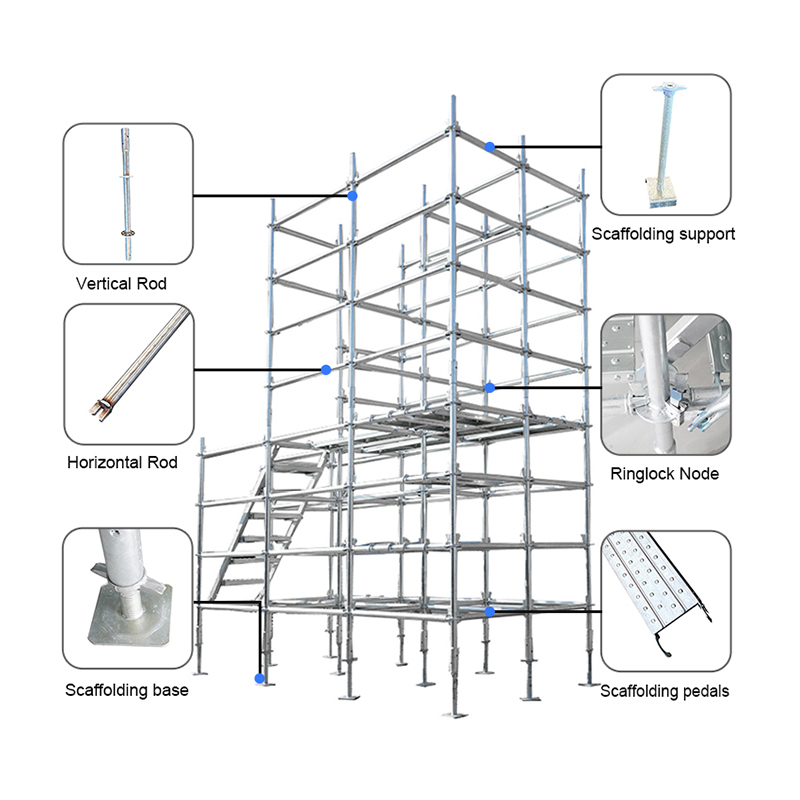

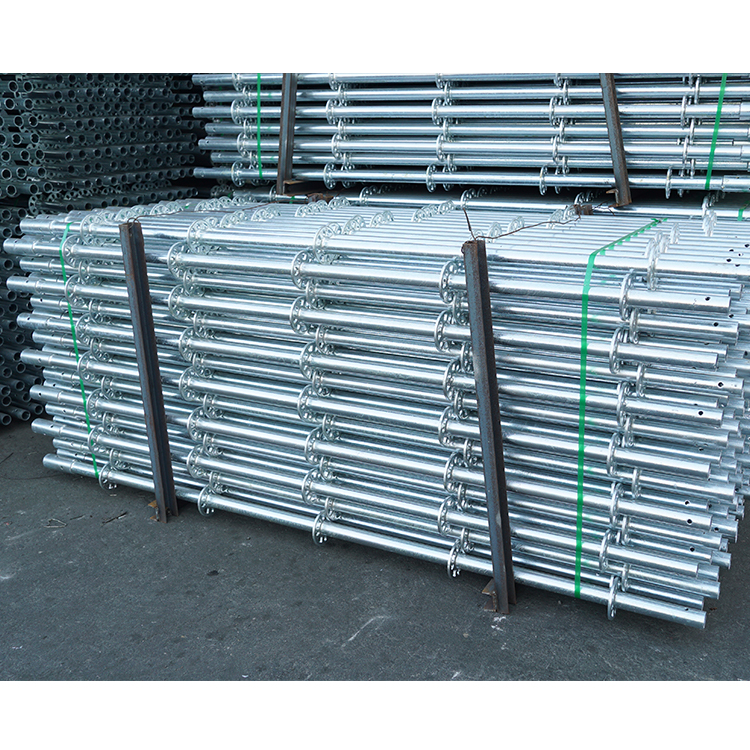

Standard Specifications for Vertical Bars |
|||||
|
Tube diameter(mm) |
Tube thickness(mm) |
Material |
Weight(kg) |
Length(mm) |
Surface treatment |
|
48 |
3.25 |
Q235 |
12.75 |
2500 |
Hot-dip galvanizing80μm |
|
48 |
3.25 |
Q235 |
10.45 |
2000 |
Hot-dip galvanizing80μm |
|
48 |
3.25 |
Q235 |
8.02 |
1500 |
Hot-dip galvanizing80μm |
|
48 |
3.25 |
Q235 |
5.17 |
1000 |
Hot-dip galvanizing80μm |
|
Standard Specifications for Horizontal Bars |
|||||
|
Tube diameter(mm) |
Tube thickness(mm) |
Material |
Weight(kg) |
Length(mm) |
Surface treatment |
|
48 |
2.75 |
Q235 |
1.41 |
300 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
2.39 |
600 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
3.34 |
900 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
4.29 |
1200 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
5.24 |
1500 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
6.14 |
1800 |
Hot-dip galvanizing80μm |
|
Specifications and Standards for Diagonal Bracing |
|||||
|
Tube diameter(mm) |
Tube thickness(mm) |
Material |
Weight(kg) |
Length(mm) |
Surface treatment |
|
48 |
2.75 |
Q235 |
5.37 |
600*1500-1600 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
5.67 |
900*1500-1700 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
6.04 |
1200*1500-1860 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
6.44 |
1500*1500-2040 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
7.04 |
1800*1500-2240 |
Hot-dip galvanizing80μm |
Comparison Table
|
Type |
Steel Grade |
Zinc Layer |
Lifespan |
|
Heavy Duty |
Q355 |
120μm |
30–50 yrs |
|
Standard |
Q345 |
80μm |
20–30 yrs |
|
Economy |
Q235 |
40μm |
10–15 yrs |

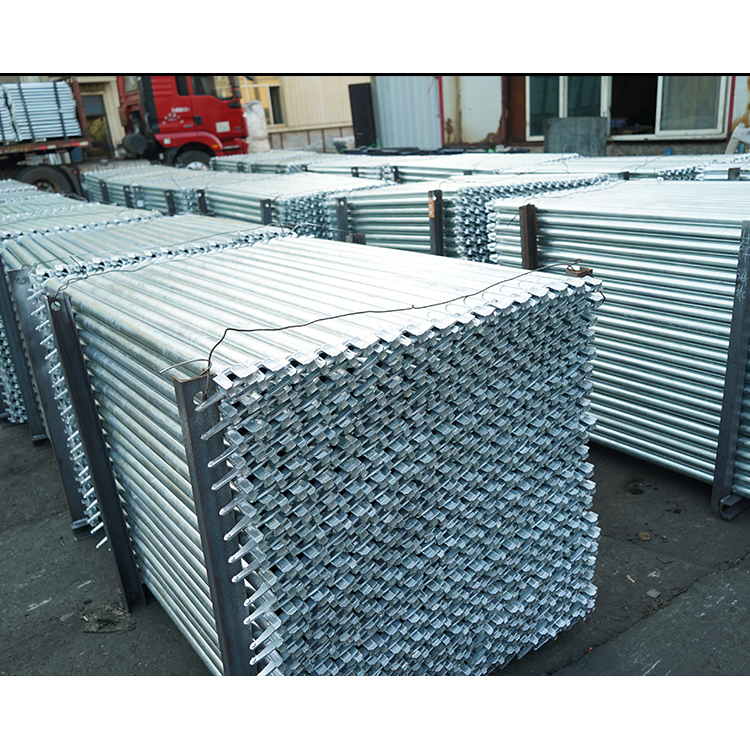

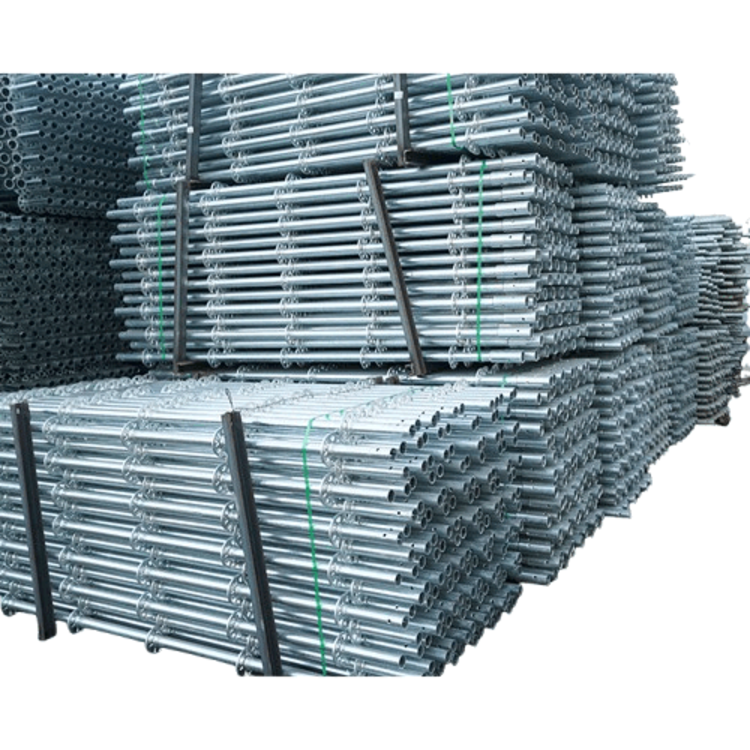

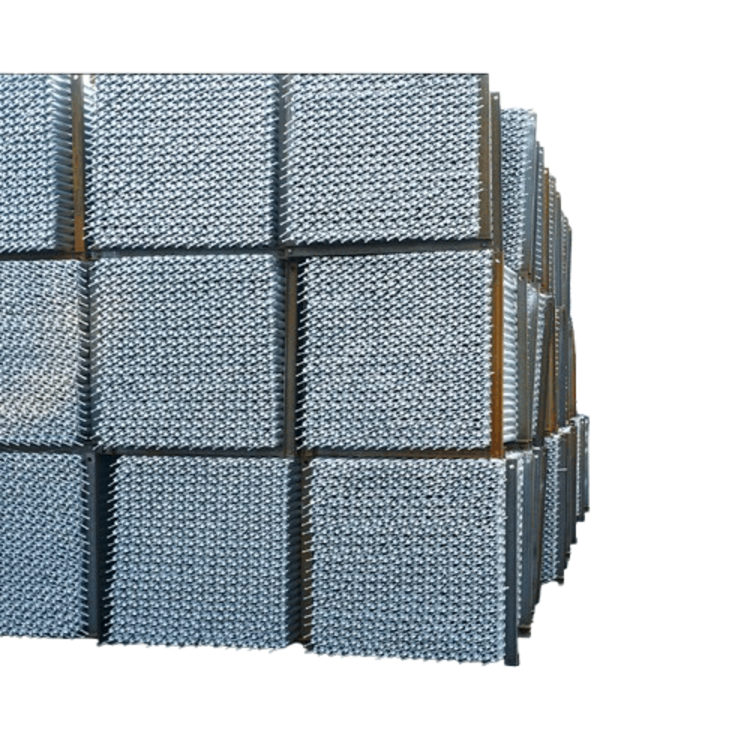

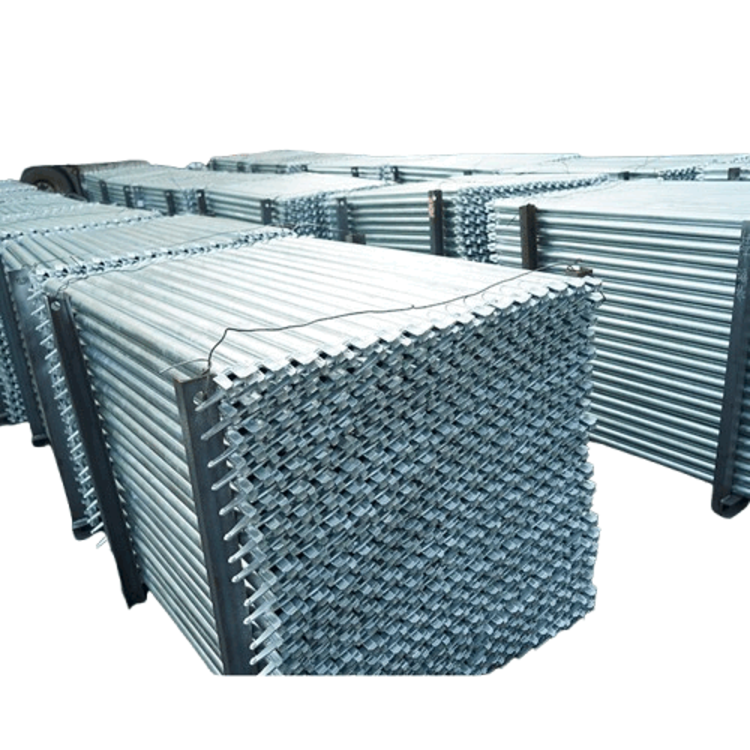

Packing & Shipping
Packed on steel pallets or wooden cases. Max loading:
20ft: 4500–5000㎡
40ft: 9000–10,000㎡
FAQ
Q:Can Zhuozhan help design a scaffolding solution for my specific project?
Yes. Zhuozhan offers custom scaffolding design services, including CAD drawings, load calculations, and layout planning tailored to your building dimensions, height, and site conditions. Our engineering team ensures the solution meets safety standards and maximizes efficiency.
Q:Do you provide technical support during installation
Absolutely. We offer technical guidance, on-site support (where possible), and detailed installation manuals for our ringlock scaffolding system. This ensures your team can assemble and dismantle the scaffolding safely and quickly.
Q:Can you customize the scaffolding system to fit special shapes or structures?
Yes. Whether it’s curved facades, irregular structures, or complex industrial sites, our modular ringlock scaffolding system can be customized with special components and unique configurations to fit your project’s requirements.
Q:Can Zhuozhan assist with calculating load capacity for my project?
Yes. Our engineers perform scaffolding load capacity calculations based on your project’s required working loads, height, and safety standards. We provide detailed technical reports to help you comply with local regulations.
Q:What information should I provide for a custom scaffolding proposal?
To prepare a tailored scaffolding solution, please share your building dimensions, project type (e.g. facade, bridge, industrial maintenance), working height, expected load, and any special site conditions or requirements.
Q:Is there any cost for design and engineering support?
For standard projects, we offer basic scaffolding layout and technical support free of charge. For complex custom designs, a small engineering fee may apply, but it’s often deducted from the final order value once confirmed.
