Standard with cups cuplock scaffolding ledger for Factory Workshops
Product Overview
Zhuozhan’s Budget-Friendly Cuplock Scaffolding offers a smart and economical solution for contractors seeking durability, simplicity, and safety on the job site. Built with high-strength Q235/Q345 steel and finished with hot-dip galvanization, this system provides long service life with minimal maintenance.
Key Features of Cuplock Scaffolding System

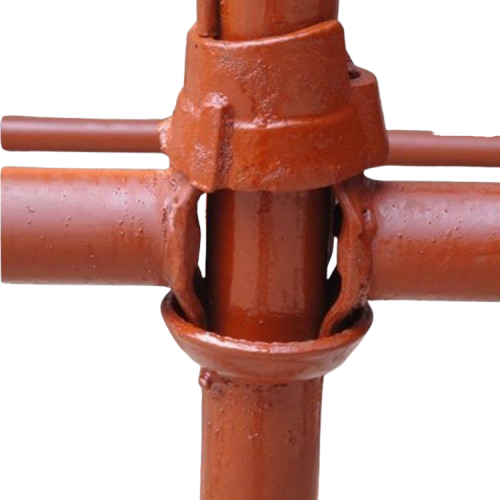

Quick Locking Mechanism
The cup-and-blade connection enables fast, tool-free assembly and dismantling, reducing labor costs significantly.
Fewer Components, Lower Cost
A simplified modular design requires fewer parts, lowering transportation, storage, and on-site handling expenses.
High Load Capacity
Made of Q235 or Q345 steel, each vertical standard delivers strong support, ideal for heavy-duty applications.
Versatile Applications
Easily adapts to façade work, slab support, bridge construction, and industrial maintenance platforms.
Excellent Stability
Rigid joints and stable geometry enhance safety and reliability on multi-level scaffold structures.
Hot-Dip Galvanized Finish
Long-lasting corrosion resistance ensures the system performs reliably in harsh weather conditions.
Global Standard Compliance
Conforms to EN12810, BS1139, and other international scaffolding safety standards.
→ Build smarter and safer with Zhuozhan Cuplock.
Product Gallery
|
Description |
Explanation |
|
|
Product |
cuplock scaffolding |
|
|
Type |
Cuplock rod |
Horizontal Rod |
|
Size |
600-3000mm |
600-1500mm |
|
Wall thickness |
3.5mm/3.25mm |
3.25mm/2.75mm |
|
Standard |
EN 12810 / 12811 BS1139 |
|
|
Surface treatment |
Hot-dip galvanizing/Electro-galvanizing/Spray painting |
|
|
Application |
Construction engineering, Bridges and transportation, industry and energy, etc |
|
|

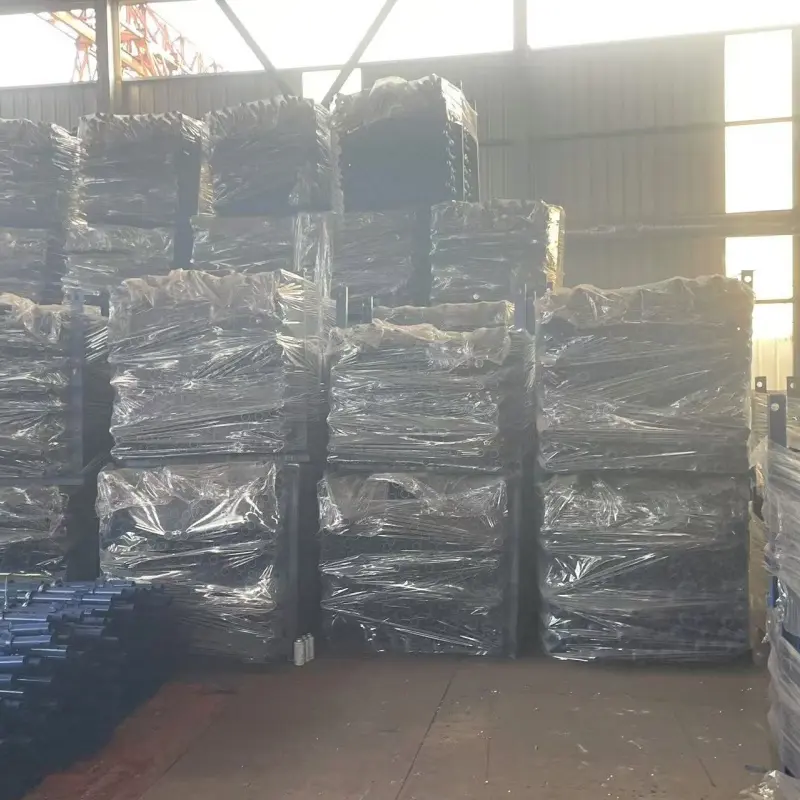

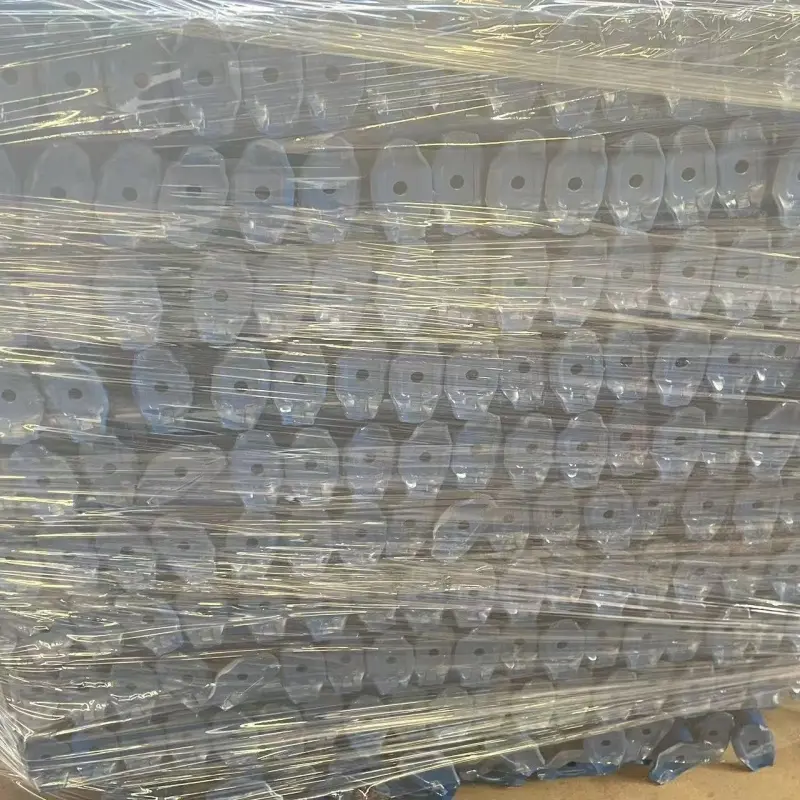

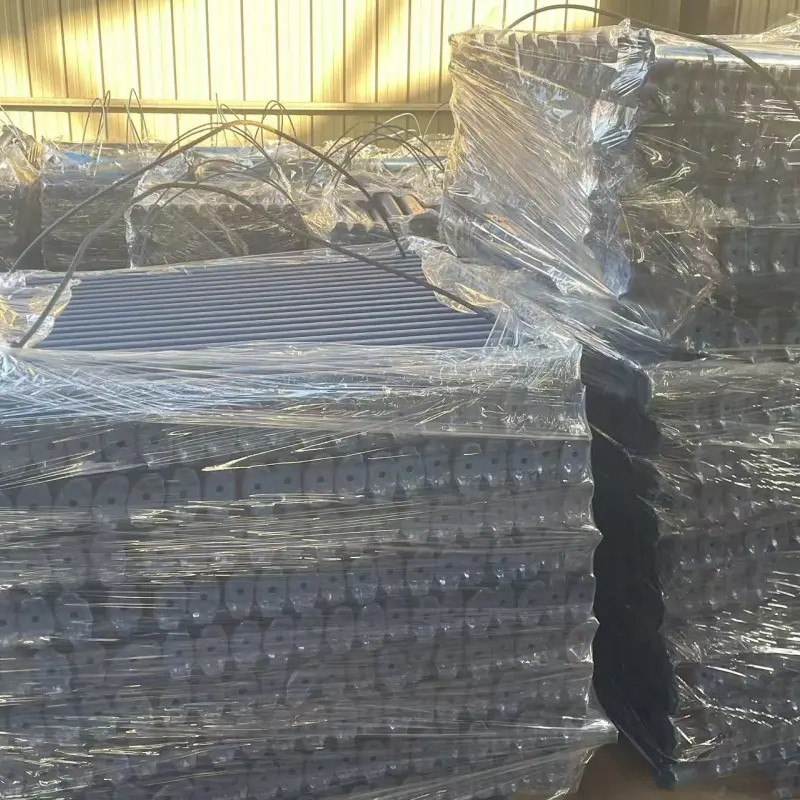

Packaging |
Steel Pallet、Plastic-Wrapped Bundles、Or package as per the customer's requirements |
|
|
Delivery time |
30 to 45 days from the date of drawing confirmation. |
|
|
Payment Terms |
T/T or L/C at sight |
|
Environmental Protection and Reusability
Zhuozhan’s Cuplock Scaffolding System is built with sustainability in mind. Manufactured from high-strength steel and finished with hot-dip galvanization, each component is designed for long-term, repeated use across dozens—even hundreds—of projects.
Its modular structure allows for efficient disassembly and compact storage, reducing material waste on-site. Compared to traditional scaffolding methods, Cuplock generates less construction debris and has a longer product lifecycle, helping contractors meet green building goals.
By choosing Cuplock, you're not only reducing project costs—you’re also minimizing your environmental footprint.
→ Durable. Reusable. Responsible.
Product parameters
|

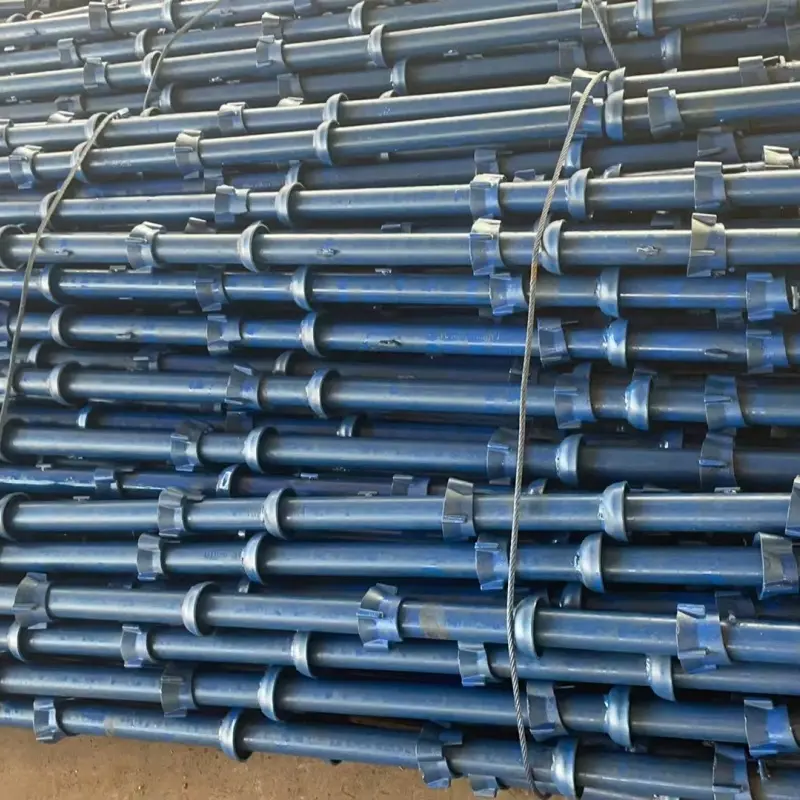

Cuplock scaffold Vertical Bars |
|||||||||
|
Length(mm) |
Tube thickness(mm) |
Material |
Tube diameter(mm) |
Weight(kg) |
Number of roots/ton |
Meters/tons |
Surface treatment |
||
|
600 |
3.5 |
Q355 |
48 |
3.69 |
271 |
192 |
Hot-dip galvanizing120μm |
||
|
900 |
3.5 |
Q355 |
48 |
4.92 |
203 |
203 |
Hot-dip galvanizing120μm |
||
|
1200 |
3.5 |
Q355 |
48 |
6.85 |
146 |
190 |
Hot-dip galvanizing120μm |
||
|
1500 |
3.5 |
Q355 |
48 |
8.78 |
114 |
183 |
Hot-dip galvanizing120μm |
||
|
1800 |
3.5 |
Q355 |
48 |
9.95 |
100 |
190 |
Hot-dip galvanizing120μm |
||
|
2100 |
3.5 |
Q355 |
48 |
11.08 |
90 |
198 |
Hot-dip galvanizing120μm |
||
|
2400 |
3.5 |
Q355 |
48 |
13.05 |
76 |
190 |
Hot-dip galvanizing120μm |
||
|
3000 |
3.5 |
Q355 |
48 |
16.15 |
62 |
192 |
Hot-dip galvanizing120μm |
||
|
Cuplock scaffold Vertical Bars |
|||||||
|
Length(mm) |
Tube thickness(mm) |
Material |
Tube diameter(mm) |
Weight(kg) |
Number of roots/ton |
Meters/tons |
Surface treatment |
|
600 |
3.25 |
Q355 |
48 |
3.51 |
284 |
284 |
Hot-dip galvanizing120μm |
|
900 |
3.25 |
Q355 |
48 |
4.56 |
219 |
219 |
Hot-dip galvanizing120μm |
|
1200 |
3.25 |
Q355 |
48 |
6.37 |
157 |
157 |
Hot-dip galvanizing120μm |
|
1500 |
3.25 |
Q355 |
48 |
7.42 |
135 |
135 |
Hot-dip galvanizing120μm |
|
1800 |
3.25 |
Q355 |
48 |
9.23 |
108 |
108 |
Hot-dip galvanizing120μm |
|
2100 |
3.25 |
Q355 |
48 |
10.3 |
97 |
97 |
Hot-dip galvanizing120μm |
|
2400 |
3.25 |
Q355 |
48 |
12.09 |
83 |
83 |
Hot-dip galvanizing120μm |
|
3000 |
3.25 |
Q355 |
48 |
14.95 |
67 |
67 |
Hot-dip galvanizing120μm |
|
Cuplock scaffold Vertical Bars |
|||||||
|
Length(mm) |
Tube thickness(mm) |
Material |
Tube diameter(mm) |
Weight(kg) |
Number of roots/ton |
Meters/tons |
Surface treatment |
|
600 |
2.75 |
Q355 |
48 |
3.15 |
317 |
228 |
Hot-dip galvanizing120μm |
|
900 |
2.75 |
Q355 |
48 |
4.02 |
249 |
225 |
Hot-dip galvanizing120μm |
|
1200 |
2.75 |
Q355 |
48 |
5.65 |
177 |
233 |
Hot-dip galvanizing120μm |
|
1500 |
2.75 |
Q355 |
48 |
6.52 |
153 |
221 |
Hot-dip galvanizing120μm |
|
1800 |
2.75 |
Q355 |
48 |
8.15 |
123 |
229 |
Hot-dip galvanizing120μm |
|
2100 |
2.75 |
Q355 |
48 |
9.02 |
111 |
212 |
Hot-dip galvanizing120μm |
|
2400 |
2.75 |
Q355 |
48 |
10.65 |
94 |
224 |
Hot-dip galvanizing120μm |
|
3000 |
2.75 |
Q355 |
48 |
13.15 |
76 |
225 |
Hot-dip galvanizing120μm |
Project Case: Economical Ringlock Scaffolding for Mid-Rise Housing Project
Location: Bandung, Indonesia
Project Type: 10-Story Affordable Housing Development
Application: Façade access scaffolding and internal stairwell platforms
Contractor: PT. Cipta Karya Nusantara
Project Overview
Local contractor PT. Cipta Karya Nusantara was tasked with constructing three residential towers under a tight schedule and limited scaffolding budget. The project required a durable, reusable scaffolding solution that could move quickly between buildings without compromising safety.
Zhuozhan Solution:
Zhuozhan supplied a complete Economical Ringlock Scaffolding System, manufactured in Q235 steel with a painted finish to lower upfront costs while maintaining structural integrity. The ringlock’s rosette system enabled rapid assembly and dismantling with minimal labor.
The scaffolding was reused across all buildings, with minimal wear and no need for replacement components — maximizing ROI while ensuring safety and efficiency.
Key Results:
Cut scaffolding setup time by 40%
Reduced initial material investment by choosing Q235
Same system reused across all towers with zero structural failures
Fully compliant with Indonesian construction safety standards
→ Zhuozhan Ringlock – Economical doesn’t mean compromise. It means smart construction.
FAQ
Q1: What makes this Cuplock scaffolding “budget-friendly”?
We use high-quality Q235 steel with a painted or light-galvanized finish to reduce material costs, while still meeting structural safety standards. Fewer components and faster installation also help cut labor expenses.
Q2: Is this system suitable for large projects or only small jobs?
Although it’s cost-effective, the system is fully capable of supporting mid- to large-scale projects, including multi-story buildings, bridges, and industrial structures.
Q3: How many times can the scaffolding be reused?
With proper handling and storage, this Cuplock system can be reused for 6–8 years or over 100 project cycles, depending on site conditions.
Q4: Does budget-friendly mean lower safety standards?
Not at all. All Zhuozhan Cuplock components are tested to comply with EN12810 / BS1139, ensuring the same level of safety and stability as premium systems.
Q5: How much can I actually save with this system?
Customers typically report 20–35% savings on total project scaffolding costs, including reduced setup time, lower freight volume, and long-term reuse.
Q6: Is customization available?
Yes. We offer custom lengths, finishes, branding, and packaging to suit your project and regional requirements.
