Product Overview：

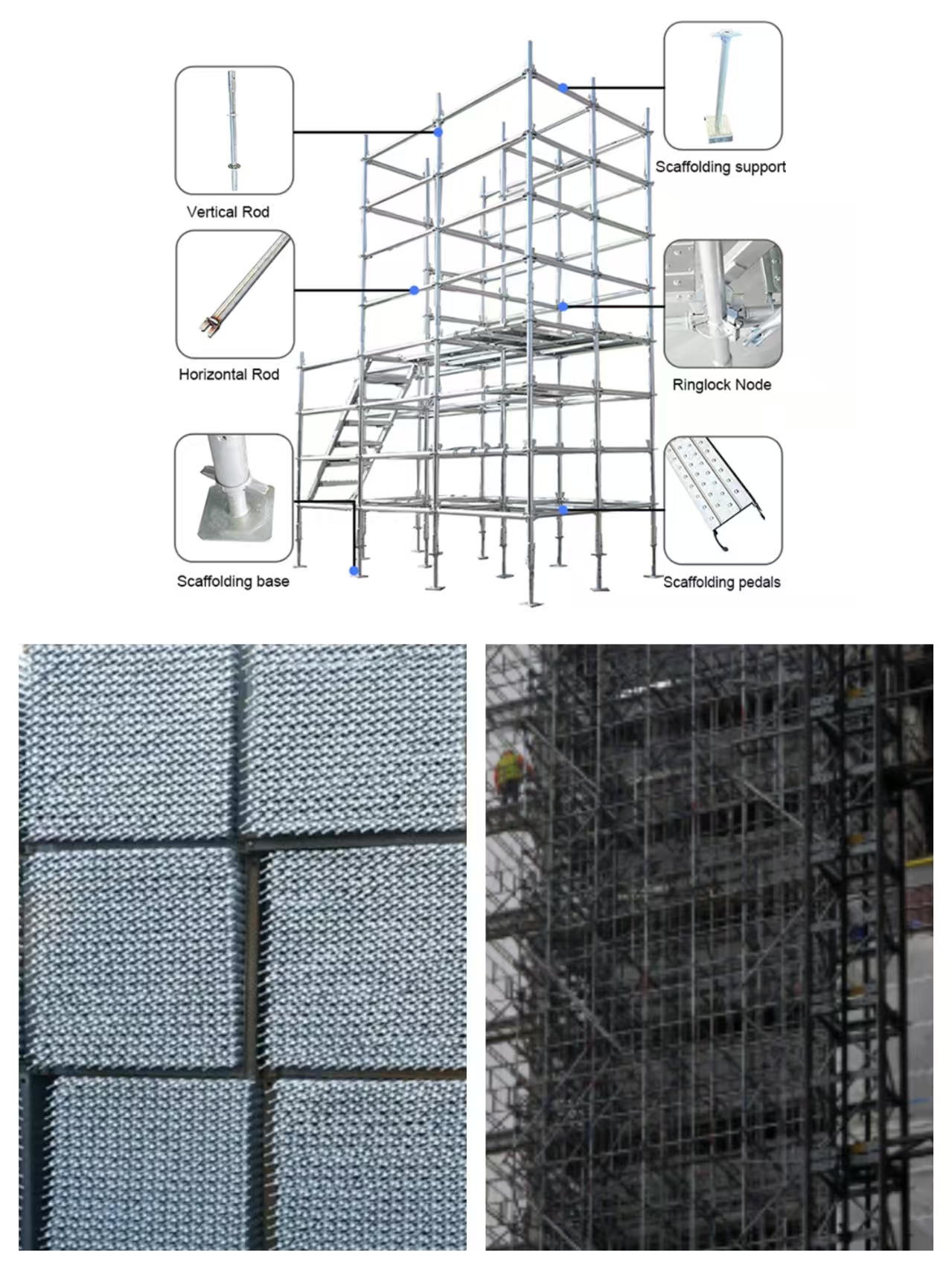

Zhuozhan ringlock system includes vertical standards, horizontal ledgers, diagonal braces, adjustable base jacks, and steel planks. Available in various sizes and finishes, it's compatible with Layher and other major scaffolding systems, making it ideal for both rental and contractor use.
Key Features of Ringlock Scaffolding System
1. High Load Capacity
Made of Q355B steel with patented ringlock nodes, each vertical supports up to 10 tons—6× stronger than household car weight.
2. Extreme Corrosion Resistance
Hot-dip galvanized with 120μm zinc coating, built to last 30–50 years in outdoor environments.
3. Harsh Environment Ready
Engineered for super high-rise loads and coastal chemical plant corrosion—Q355B steel + thick zinc layer.
4. Fast Modular Assembly
Tool-free plug-in design; install each node in under 15 seconds—60% faster than traditional scaffolding.
Product Gallery
|
Description |
Explanation |
|
|
Product |
Ringlock scaffolding |
|
|
Type |
Scaffolding pole |
Horizontal Rod |
|
Size |
1000-2500mm |
300-1200mm |
|
Wall thickness |
2.75mm |
3.25mm |
|
Standard |
EN 12810 / 12811 |
|
|
Surface treatment |
Hot-dip galvanizing/Electro-galvanizing/Spray painting |
|
|
Application |
Construction engineering, Bridges and transportation, industry and energy, etc |
|
|
Packaging |
Steel Pallet、Plastic-Wrapped Bundles、Or package as per the customer's requirements |
|
|
Delivery time |
30 to 45 days from the date of drawing confirmation. |
|
|
Payment Terms |
T/T or L/C at sight |
|
System Compatibility & Customization
Ringlock scaffolding is compatible with major systems such as Layher. We offer full customization on:
Steel grade (Q235 / Q355)
Length & thickness
Zinc layer (up to 120μm)
Logo stamping & painting
Palletized packing / loose
Product testing and certification display
Product parameters:
|
Standard Specifications for Vertical Bars |
|||||
|
Tube diameter(mm) |
Tube thickness(mm) |
Material |
Weight(kg) |
Length(mm) |
Surface treatment |
|
48 |
3.25 |
Q345 |
12.75 |
2500 |
Hot-dip galvanizing120μm |
|
48 |
3.25 |
Q345 |
10.45 |
2000 |
Hot-dip galvanizing120μm |
|
48 |
3.25 |
Q345 |
8.02 |
1500 |
Hot-dip galvanizing120μm |
|
48 |
3.25 |
Q345 |
5.17 |
1000 |
Hot-dip |
|
Standard Specifications for Horizontal Bars |
|||||
|
Tube diameter(mm) |
Tube thickness(mm) |
Material |
Weight(kg) |
Length(mm) |
Surface treatment |
|
48 |
2.75 |
Q345 |
1.41 |
300 |
Hot-dip galvanizing120μm |
|
48 |
2.75 |
Q345 |
2.39 |
600 |
Hot-dip galvanizing120μm |
|
48 |
2.75 |
Q345 |
3.34 |
900 |
Hot-dip galvanizing120μm |
|
48 |
2.75 |
Q345 |
4.29 |
1200 |
Hot-dip galvanizing120μm |
|
48 |
2.75 |
Q345 |
5.24 |
1500 |
Hot-dip galvanizing120μm |
|
48 |
2.75 |
Q345 |
6.14 |
1800 |
Hot-dip galvanizing120μm |
Project Case

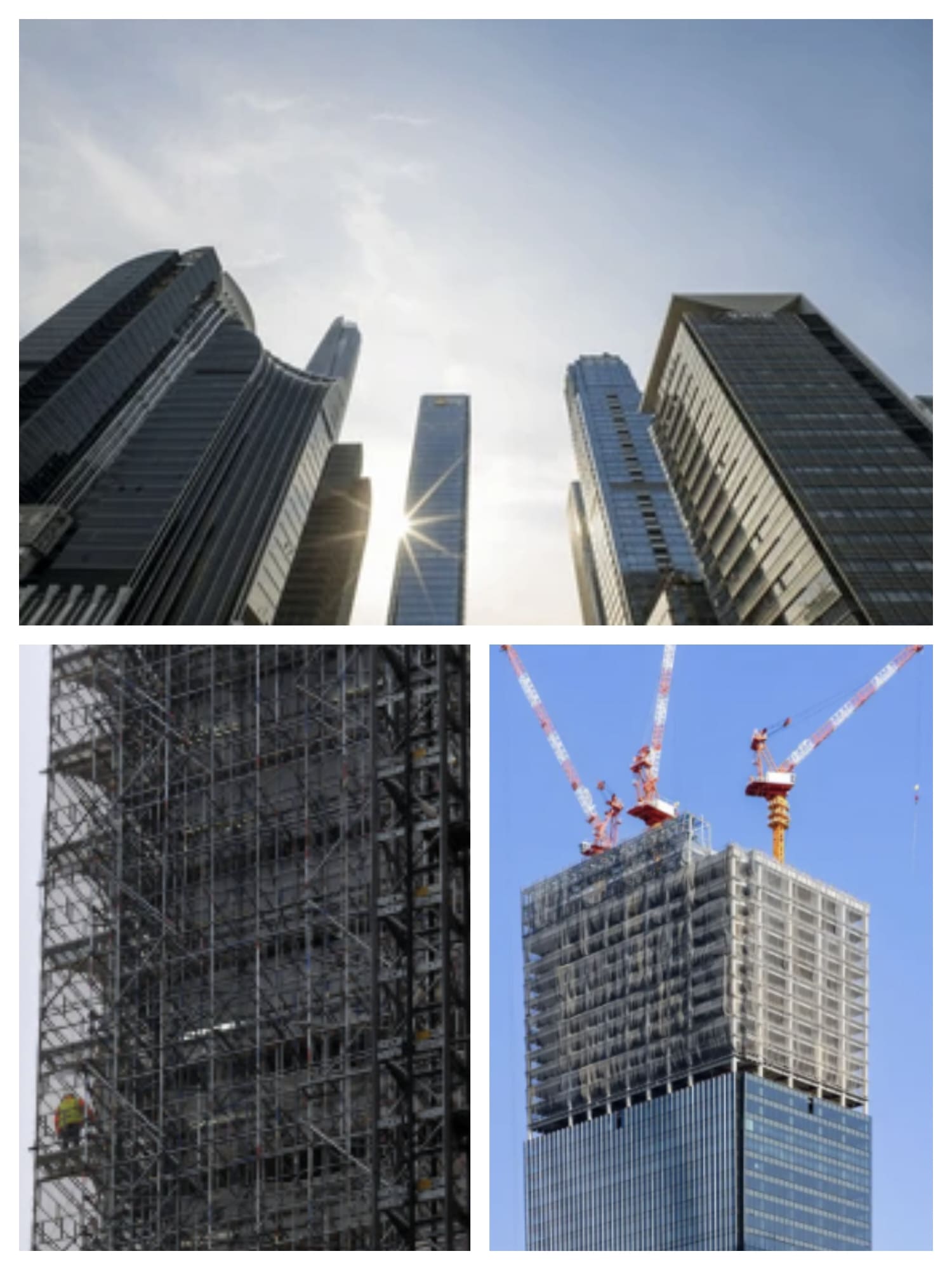

High-Rise Facade Scaffolding in Shenzhen, China
In this 60-story commercial tower construction project in Shenzhen, Zhuozhan provided a full ringlock scaffolding system designed specifically for high-rise scaffolding solutions. The project required a reliable and long-lasting system due to a construction period exceeding 18 months and high structural complexity.
To meet the safety and durability demands, we used:
Q355B high-strength steel scaffolding, offering 20% higher yield strength than Q235
Hot-dip galvanized scaffolding with a 120μm zinc layer, ensuring strong corrosion resistance in humid and coastal climatesThis heavy-duty scaffolding system covered over 5,000㎡ of the building’s facade, supporting both vertical and wind loads efficiently. The modular scaffolding structure allowed for quick assembly and dismantling, saving valuable project time.
Zhuozhan’s durable modular scaffolding helped ensure safety, stability, and on-time delivery for this super high-rise project.
FAQ
Q1: Can I customize the sizes and surface treatment?
Yes, we offer full customization including length, diameter, wall thickness, steel grade (Q235/Q355), and surface finish (HDG, electro-galvanized, spray painting).
Q2: What’s your minimum order quantity (MOQ)?
Our MOQ is usually one 20-foot container. Mixed items are acceptable.
Q3: Are your scaffolding systems compatible with Layher or other brands?
Yes, our ringlock components are fully compatible with Layher and most international systems.
Q4: Can you provide samples before placing bulk orders?
Yes, we can send samples for quality inspection. Shipping costs can be negotiated.
Q5: How are the products packed for export?
We use steel pallets, plastic-wrapped bundles, or iron cages to ensure safe and efficient loading. Custom packaging is available.
