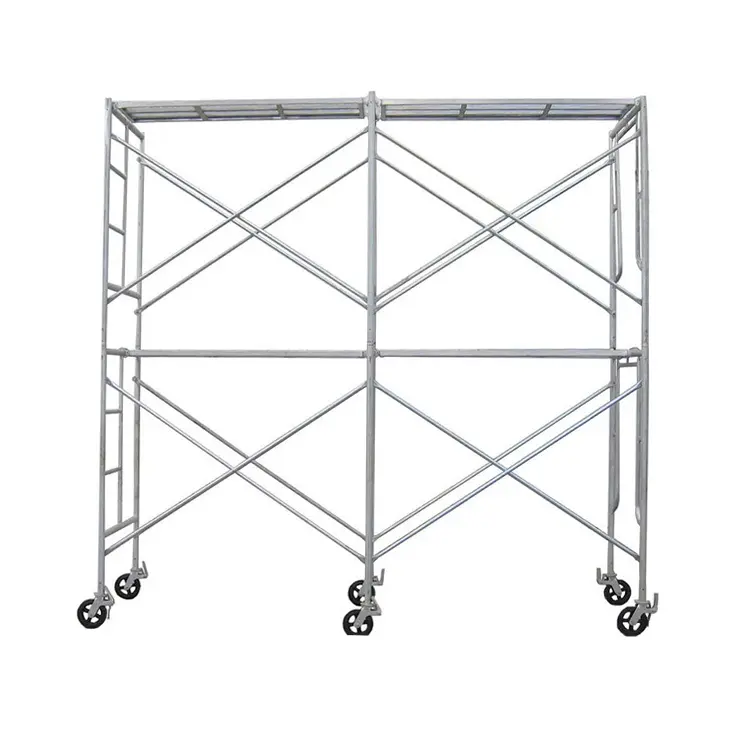

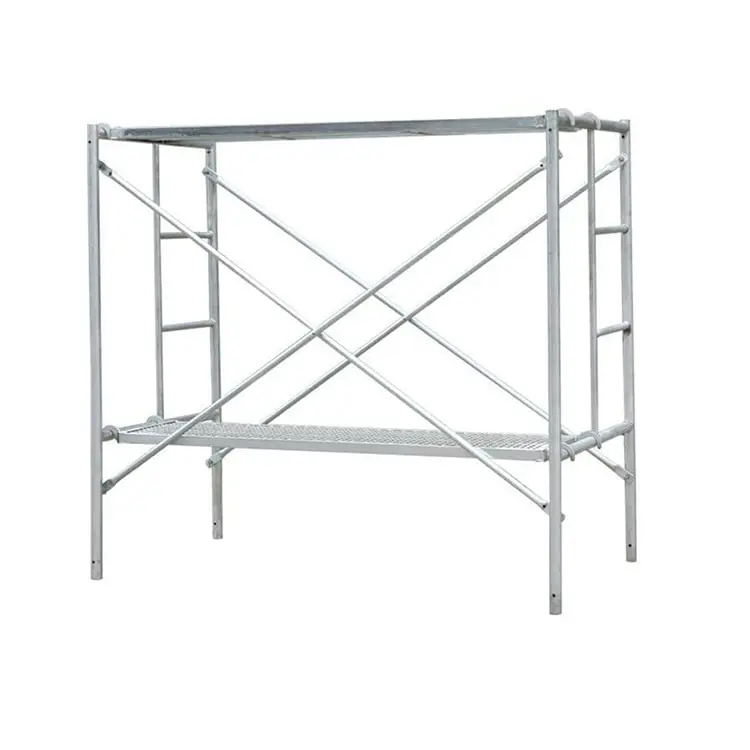

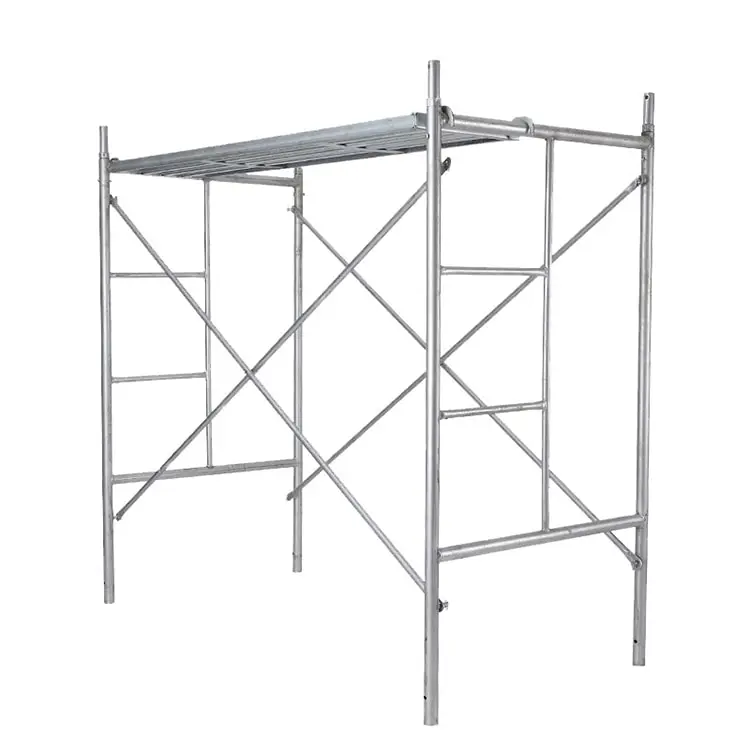

1700×1219mm ladder frame scaffolding for Industrial Buildings

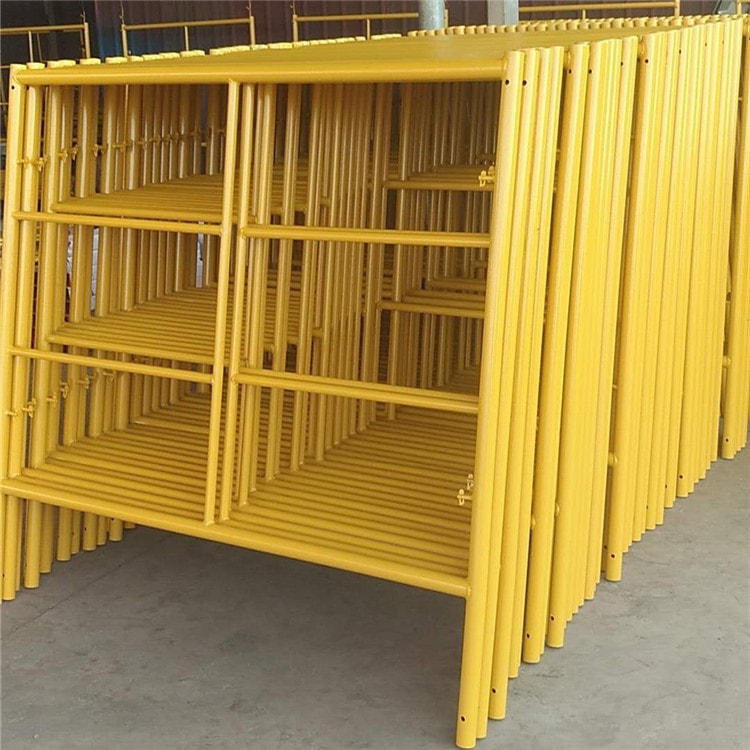

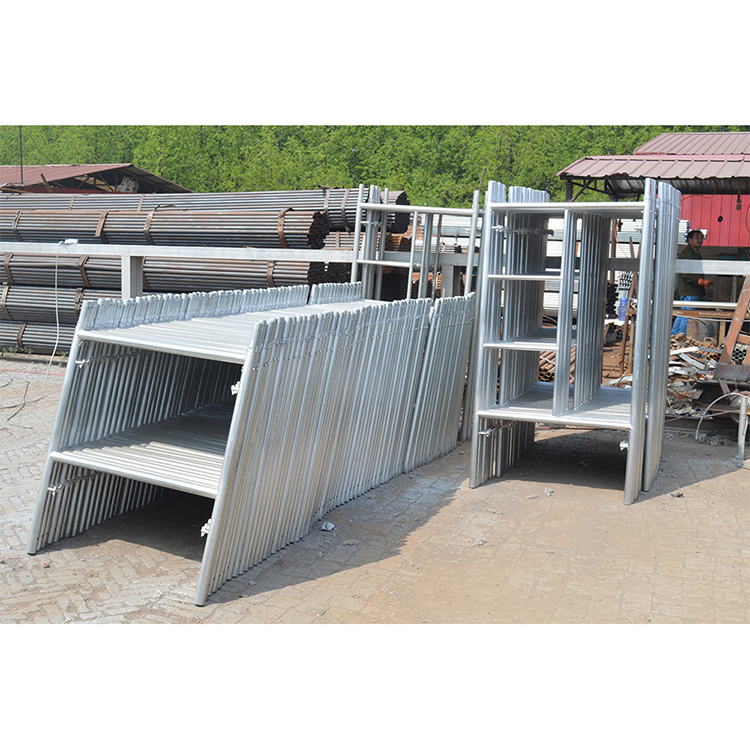

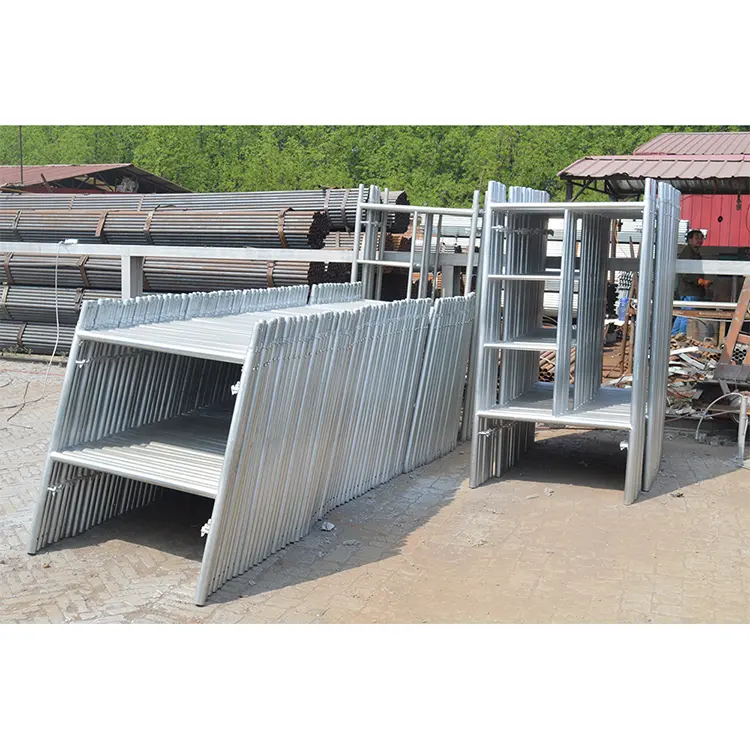

Each Zhuozhan frame is built from high-grade structural steel, ensuring exceptional strength and load capacity. To withstand harsh job site conditions, the surface is treated with either hot-dip galvanizing for maximum corrosion resistance or industrial-grade painting for a cost-effective protective finish. This robust construction allows the scaffolding to endure repeated assembly and dismantling without compromising safety or stability, even after years of use. In typical project cycles, a single set can be deployed across dozens of construction sites, significantly extending its service life. As a result, contractors can achieve an average 25% reduction in per-project equipment costs, maximizing return on investment while maintaining consistent performance.
Product Description
Zhuozhan’s Frame Scaffolding is designed for contractors and procurement managers who need reliable, safe, and cost-effective access solutions. Built with high-grade steel and treated with hot-dip galvanizing or industrial-grade painting, each frame delivers exceptional durability for multiple reuse cycles, significantly lowering the total cost of ownership.
The modular quick-lock design allows just two workers to assemble a bay within minutes—cutting setup time by 30–40% and reducing labor requirements by up to one-third compared to traditional tube-and-coupler systems. This labor efficiency, combined with the scaffold’s long lifespan, leads to an average 25% reduction in per-project equipment costs.
Key Features
Modular Quick-Lock Design

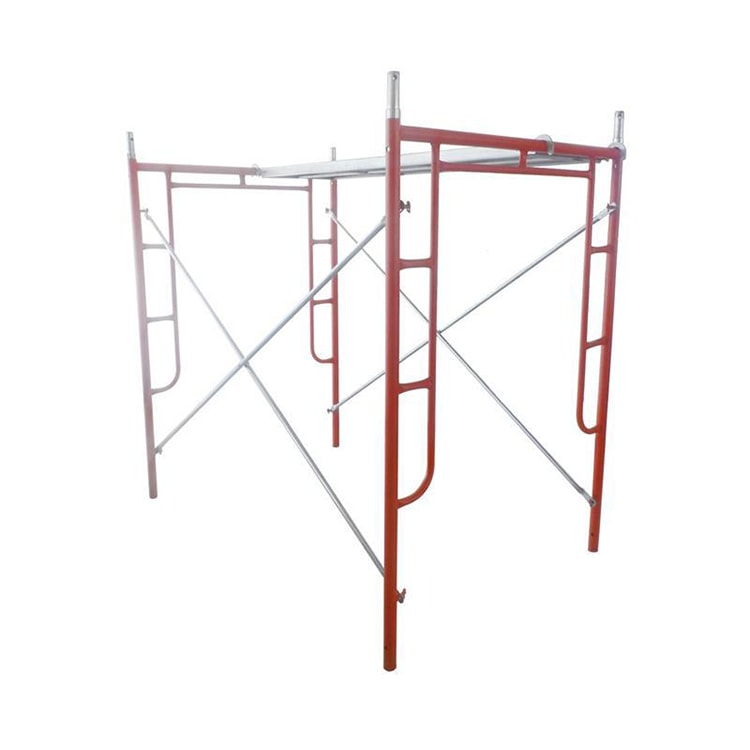

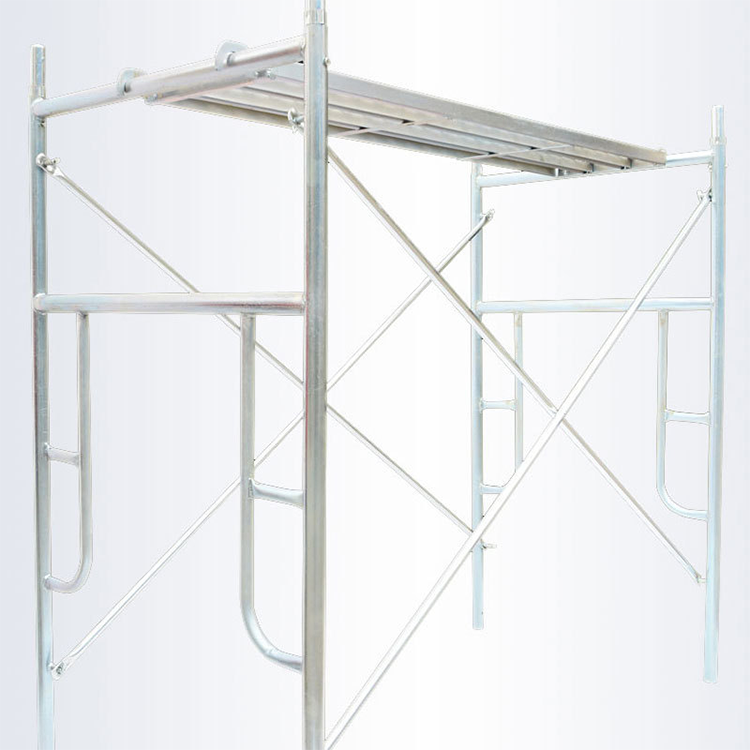

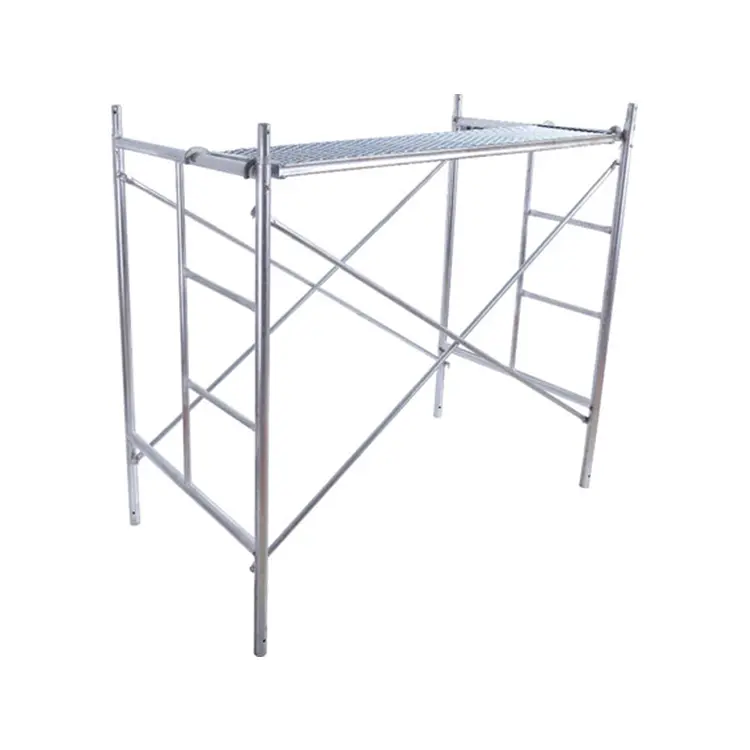

Standardized H-frame and cross-brace modules enable fast, tool-free assembly and disassembly, reducing setup time by 30–40%. Ideal for speeding project timelines.
High-Grade Steel Construction
Made from premium structural steel (e.g., Q235 / Q345) for superior strength and load-bearing capacity, ensuring stable support under heavy-duty use.
Durable Surface Treatments

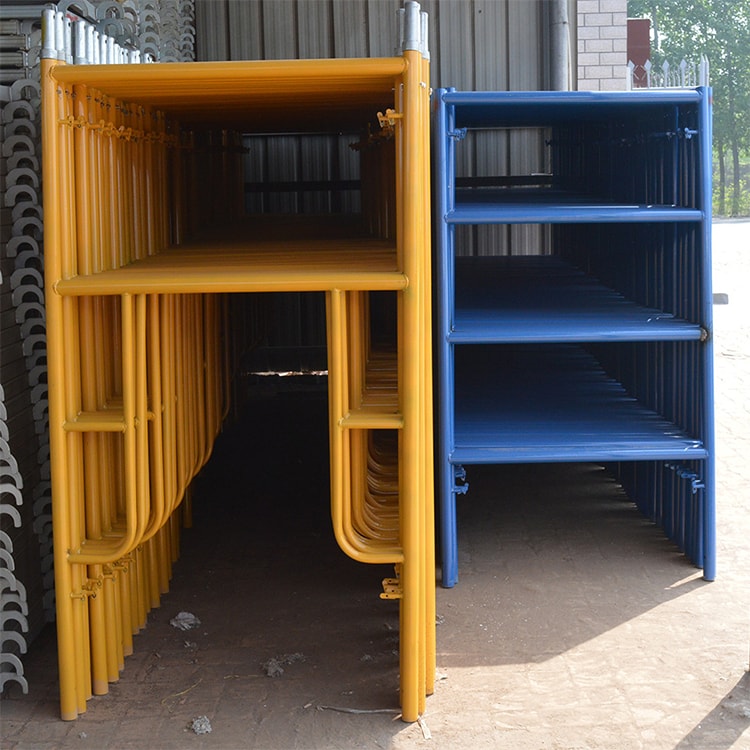

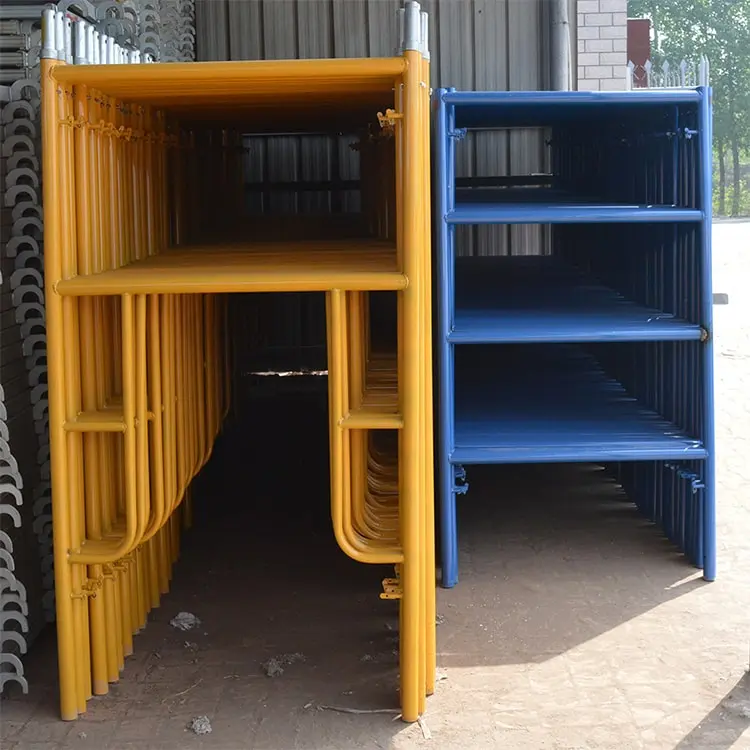

Options include hot-dip galvanizing for long-term outdoor corrosion resistance and industrial-grade painting for cost-effective indoor/short-term applications.
Anti-Slip Work Platforms
Walking decks feature textured or treated surfaces to prevent slips, even in wet or dusty environments, enhancing worker safety.
Labor Efficiency
Only two workers can erect a bay quickly; labor requirements are roughly one-third less than traditional tube-and-coupler scaffolds.
Reusability & ROI
Designed for repeated use across dozens of projects—durability and low maintenance translate into significant per-project cost savings (≈25% on average).
Cost Advantages
Modular design improves installation efficiency by 30–40%
Reusable, reducing average project costs by 25%
Reduces labor by 1/3 compared to traditional fasteners
Compatible with a wide range of accessories, reducing maintenance costs
Project Location
A township central primary school in Chuanshan District, Suining City, Sichuan Province
Project Background:
The primary school building, due to its age, required reinforcement and renovation, as well as partial floor expansion. Supported by local infrastructure funds, the project met strict safety requirements with a limited budget and a construction period of only 60 days.
Products Used:
Zhuozhan Economical Gantry Scaffolding System (Q235 Material/40μm Galvanized Coating)
Gantry Frame Size: 1219x1700mm
Crossbars/Diagonal Braces: Adjustable
Combined with Steps, Guardrails, and Safety Ladders
Application Scenarios:
Exterior Facade Painting and Insulation Installation of Teaching Buildings
Additional Structural Formwork Support for Floors
Interior Ceiling and Pipeline Installation Platforms
Roof Railing and Waterproofing Installation
Advantages:
Quick Assembly: No specialized technicians are required; a team of two can erect a full-level platform within one day.
Stable and Reliable: Mainly constructed of Q235 carbon steel, the entire structure has passed verification load testing.
Economical and Efficient: Saves nearly 40% of the procurement budget compared to scissor-type scaffolding, with a high reuse rate.
Flexible Adjustment: Adapts to different height requirements and allows for flexible arrangement between construction intervals.
Customer Feedback:
"We chose the economical portal scaffolding, which not only saved costs but also improved efficiency. It was erected quickly, the structure was adequate, and the safety inspection passed immediately, allowing the project to be completed on schedule."
-- Engineer Liu, Project Construction Manager
FAQ
Q1: How much weight can your frame scaffolding support?
A1: Our heavy-duty steel frame scaffolding is engineered to handle up to 4,000 lbs per bay, depending on configuration and platform setup. Always follow local safety standards and load charts for secure use.
Q2: Can I assemble frame scaffolding without special tools?
A2: Yes. The modular frame system is designed with quick-lock connections, allowing fast setup with no special tools required. Two workers can assemble an entire bay in just minutes.
Q3: Is your frame scaffolding suitable for uneven ground?
A3: Yes. Adjustable base jacks and leveling accessories ensure stability even on uneven terrain, making it suitable for construction sites, industrial maintenance, and event stages.
Q4: Do you provide customized sizes and finishes?
A4: Absolutely. We manufacture scaffolding in standard and custom dimensions, with options such as hot-dip galvanization, powder coating, or painted finishes to suit different environments and budgets.
Q5: How do I know if frame scaffolding is right for my project?
A5: Frame scaffolding is ideal for building renovations, facade work, painting, plastering, and event staging. If your project requires quick setup and wide working platforms, frame scaffolding is the best choice.
Q6: Can I buy only specific parts, like frames or planks?
A6: Yes. We supply individual scaffolding components (frames, braces, planks, guardrails, casters, etc.) so you can replace or expand your existing system easily.
Q7: How does frame scaffolding compare to ringlock scaffolding?
A7: Frame scaffolding offers faster setup and lower cost, making it ideal for medium-height projects and short-term use. Ringlock scaffolding provides higher flexibility and load-bearing capacity, better for large or complex projects.
