High-Strength Scaffold Standards for Construction Vertical Support
Core Features
Ultra-Durable Material
Constructed from Q235 carbon steel or 6061-T6 aluminum alloy, with hot-dip galvanized coating (≥80μm zinc layer) for exceptional rust resistance, suitable for harsh outdoor conditions.
Wall thickness ranges from 2.5mm to 3.2mm, ensuring rigidity and long-term durability.
Precision Engineering

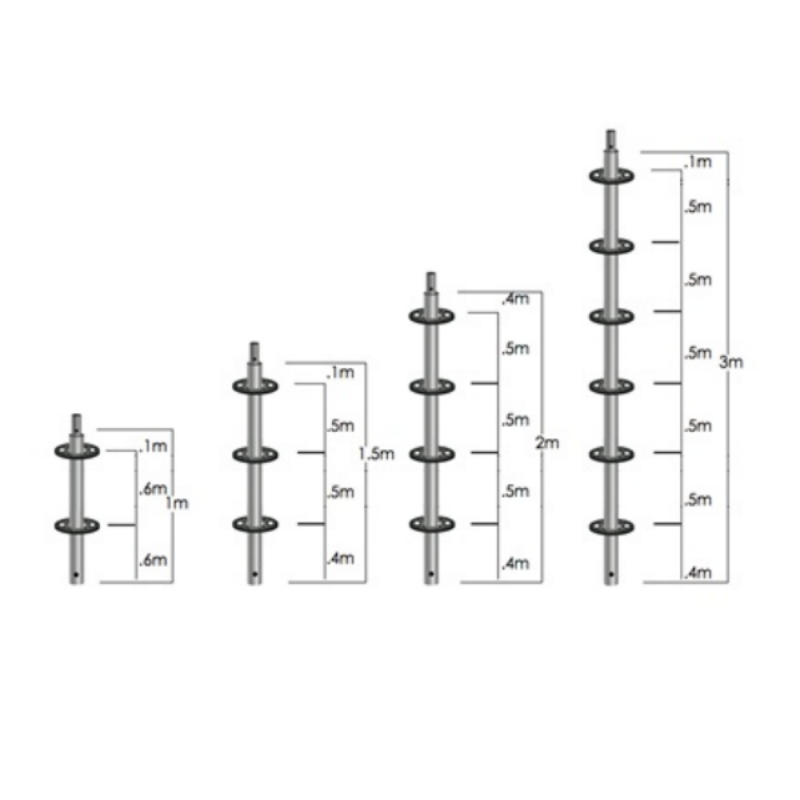

Standardized lengths (0.5m, 1m, 1.5m, 2m, 3m) with seamless compatibility for ledgers and braces, reducing assembly time by 40%.
Laser-cut pin-and-sleeve connections eliminate wobbling risks, enhancing structural integrity.
Safety-Centric Design
Pre-installed anti-slip nodes and locking pin holes prevent accidental disassembly, meeting ISO 9001 and global safety certifications.
Load-tested up to 6kN per unit, ideal for multi-tier scaffolding configurations.

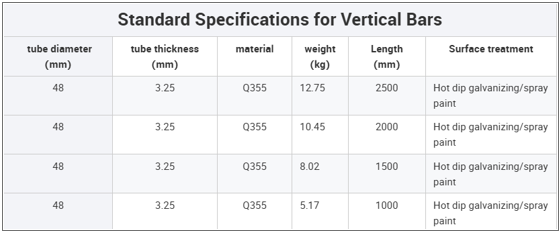

Technical Specifications
Applications
High-Rise Construction
Supports exterior wall installations, concrete pouring, and facade repairs in skyscrapers.
Industrial Maintenance
Ideal for bridge repairs, power plant maintenance, and oil pipeline inspections.
Temporary Structures
Used in event stage setups, emergency rescue platforms, and indoor renovation projects.
Complex Profiles
Compatible with H-beams, I-beams, and rectangular pipes for customized scaffolding configurations.
Packaging & Service
Packaging: Bundled in anti-scratch film (10-20 units per bundle) or customized palletization.
Shipping: 20GP container holds 1,500 units (2m length).
After-Sales: 3-year warranty, free technical support, and on-site installation training.
Why Choose Us?
Zero-Defect Guarantee: Each batch undergoes third-party load testing.
Global Compliance: Certified for EU, US, and Asian safety standards.
Eco-Friendly: 100% recyclable materials reduce environmental impact.
Company introduction and brand strength
Zhuozhan Group is a comprehensive enterprise integrating scientific research, production and sales. It owns subsidiaries such as Laoting Zhuozhan International Trade Hebei and Shuangyang Metal Structure. Mainly engaged in scaffolding, steel pipes, steel coils, support steel and other products. Hebei Shuangyang Metal Structure was established in 2014 and has been at the forefront of the industry, with a total area of 13132.68 square meters, a construction area of 7124.58 square meters, more than 500 employees, more than 150 sets of equipment, 15 patents, and an annual output of 300,000 tons of steel pipes and 1 million scaffolds. tons, with adjustable steel supports of 400,000 tons. Our products are sold to more than 30 provinces in China and we cooperate with more than 150 manufacturers, including key enterprises; our products are exported to many countries in Asia, Europe, the United States, and Africa, and have gained overseas recognition for our high-quality services. Last year's sales exceeded 20 million US dollars, which has considerable competitiveness and potential.
