High Precision Laser Screed for Concrete Leveling

A Laser Screed is a high-precision concrete leveling machine designed to achieve flat and level concrete surfaces with superior accuracy and efficiency. By integrating laser control technology, hydraulic power, and mechanical leveling systems, it ensures precise elevation control and uniform surface finish across large floor areas.

This equipment is widely used in industrial floors, warehouses, parking lots, airports, and other large-scale concrete projects where surface flatness and smoothness are critical.

The laser screed automatically adjusts the leveling head height through laser receivers and a control system, significantly reducing manual labor and improving productivity. Compared to traditional methods, it shortens construction time, reduces material waste, and enhances concrete surface quality and overall flatness.

The Laser Screed operates based on a laser-guided leveling system that ensures precise concrete surface flatness. A laser transmitter emits a continuous reference plane across the working area, which is detected by laser receivers mounted on the leveling head. The control system interprets these signals and automatically adjusts the height of the screed head through a hydraulic servo mechanism.

During operation, the machine spreads, vibrates, and levels freshly poured concrete simultaneously. The vibrating beam compacts the concrete while the screed head cuts and levels the surface to the desired elevation. Real-time laser feedback guarantees that every section of the floor remains within tight tolerance limits, regardless of ground irregularities.

By combining automatic laser control, mechanical leveling, and hydraulic actuation, the Laser Screed achieves faster construction speed, higher flatness (FF/FL), and superior surface finish compared to manual or traditional methods.

Laser Screed machines offer outstanding precision, efficiency, and durability in concrete floor construction. Designed with advanced laser technology and hydraulic systems, they ensure a perfectly level surface with minimal human error and maximum productivity.

High Leveling Accuracy:
Equipped with an advanced laser control system to maintain precise height and flatness across large concrete areas.

Superior Construction Efficiency:
The wide screed head and automatic control system enable faster paving and leveling, reducing labor intensity and project time.

Stable and Durable Structure:
Heavy-duty steel frame and wear-resistant components ensure long service life even in harsh construction environments.

Intelligent Operation System:
Easy-to-use control panel with automatic and manual modes for flexible operation.

Strong Power and Low Failure Rate:
Equipped with reliable engines (Honda / Yanmar), high hydraulic stability, and imported key components.

Smooth Surface Finish:
High-frequency vibration system provides dense and smooth concrete surfaces, meeting industrial flatness standards (FF/FL).

Easy Maintenance and Transportation:
Modular design makes daily maintenance, cleaning, and transport convenient and efficient.

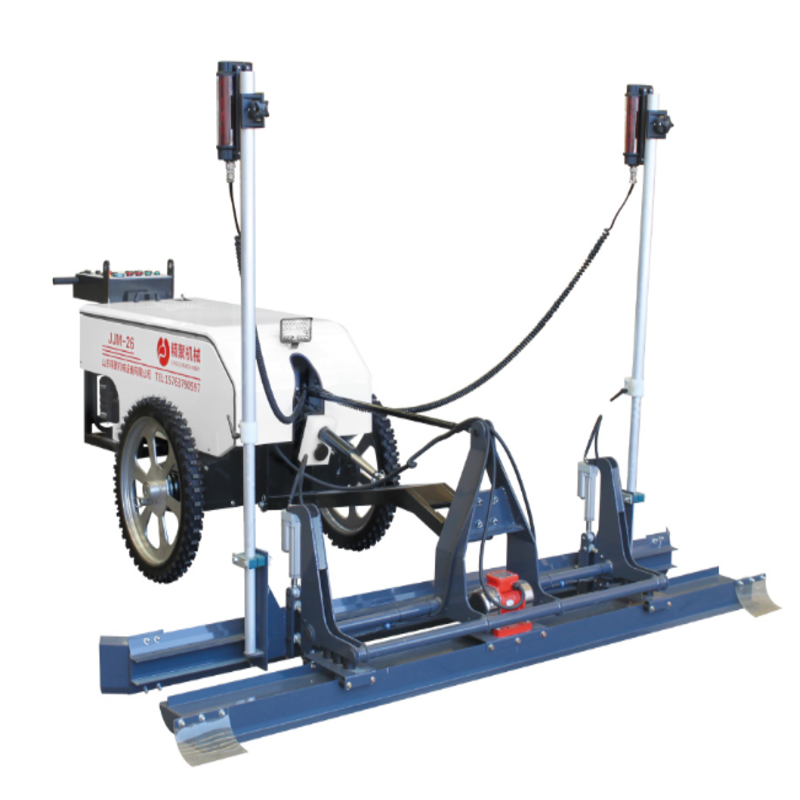

2L-JJM-260 Hand-held laser leveling machine

This model is a lightweight, hand-held laser screed machine, easy to operate and suitable for small to medium-sized floors. It employs a laser automatic control system, enabling high-precision leveling, and offers convenient, stable, and reliable construction.

Features:

Laser-controlled precision leveling.

Manual or automatic laser control mode.

Compact structure, suitable for small/medium-size floors.

Laser Screed machines are widely used in various large-area concrete floor construction projects where flatness, smoothness, and efficiency are critical.
They are ideal for industrial, commercial, and public infrastructure applications, ensuring consistent quality and high productivity.

Typical Applications Include:

Industrial Floors: Manufacturing workshops, production plants, and assembly lines requiring ultra-flat floors.

Warehouses & Logistics Centers: Large storage and distribution facilities demanding high surface accuracy for forklift and rack stability.

Parking Lots & Garages: Multi-level or open-air parking areas requiring smooth and durable surfaces.

Airports & Terminals: Runways, aprons, and hangars that need strict levelness and surface tolerance.

Commercial Buildings: Shopping malls, supermarkets, and exhibition halls requiring aesthetic and even flooring.

Infrastructure Projects: Port docks, subway platforms, and other large flat concrete structures.

By using a laser screed, contractors can significantly improve construction speed, reduce labor intensity, and achieve superior concrete flatness (FF/FL standards), ensuring long-term durability and safety of the finished floor.

Q1: How to choose the right laser screed model?
A1: The choice depends on your project size, site condition, and concrete floor flatness requirement. Walk-behind models are ideal for small or medium areas, while ride-on types are best for large industrial floors.

Q2: Can the laser screed work on sloped or uneven floors?
A2: Yes. The laser control system can automatically adjust the screed level, supporting slope correction within ±10°.

Q3: How many workers are required for operation?
A3: Normally, one operator can control the machine, and one or two assistants handle concrete feeding and edging.

Q4: What type of laser system does it use?
A4: It uses a high-precision laser transmitter and receiver system to ensure consistent height reference across the entire working area.

Q5: How often does the machine need maintenance?
A5: Regular maintenance every 200 hours of operation is recommended, including checking hydraulic oil, cleaning filters, and calibrating the laser sensors.

Q6: What’s the power source of the machine?
A6: Most models are powered by reliable Honda or Yanmar engines, ensuring strong performance and low fuel consumption.

Q7: Is training or technical support provided?
A7: Yes, we provide detailed operation manuals, online video training, and lifelong technical support.
