Standard modular design ring lock scaffolding
Attribute |
Description |
Product： |
Standard ring-lock scaffolding |
Material： |
Q345 Steel |
Outer diameter: |
48mm |
Wall thickness: |
3.25mm |
Hot-dip Galvanized: |
Zn coating thickness: 80μm |
enforce standards： |
EN 12810 / 12811 |
Welding process： |
High-frequency welding |
Applicable scenarios： |
Industrial maintenance platform |
Product Overview
Zhuozhan’s ringlock scaffolding system is more than just hardware — it’s a jobsite-ready solution designed to simplify complex builds. Whether you're working on high-rise construction, industrial maintenance, or bridge scaffolding access, our modular steel system delivers flexibility, load-bearing strength, and on-site safety where it matters most.
Key Features of Ringlock Scaffolding System
1. Certified Quality Assurance
Compliant with EN12810 / EN12811, ISO 9001, and tested by SGS / TUV, ensuring safety and performance for global markets.
2.Complete Component Supply

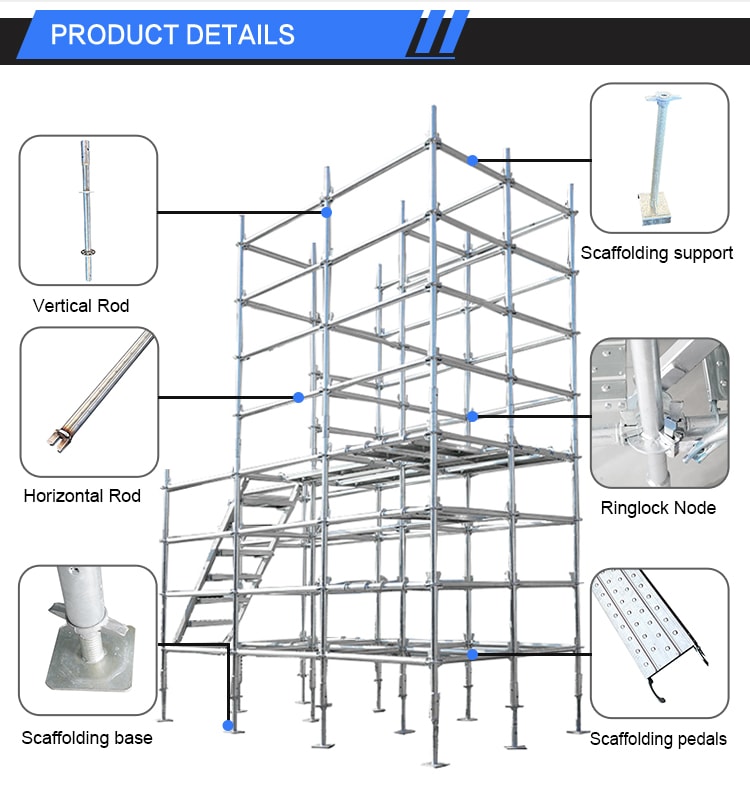

We provide a full set of scaffolding parts: vertical standards, ledgers, braces, base jacks, U-heads, steel planks, guardrails, connectors, and accessories—all under one system.
3.Full System Compatibility
Compatible with Layher and other global scaffolding standards. Perfect for mixed systems or global construction teams.
4. Strong Wind & Vertical Load Resistance
Ideal for super high-rise projects and coastal environments where stability under extreme weather is critical.

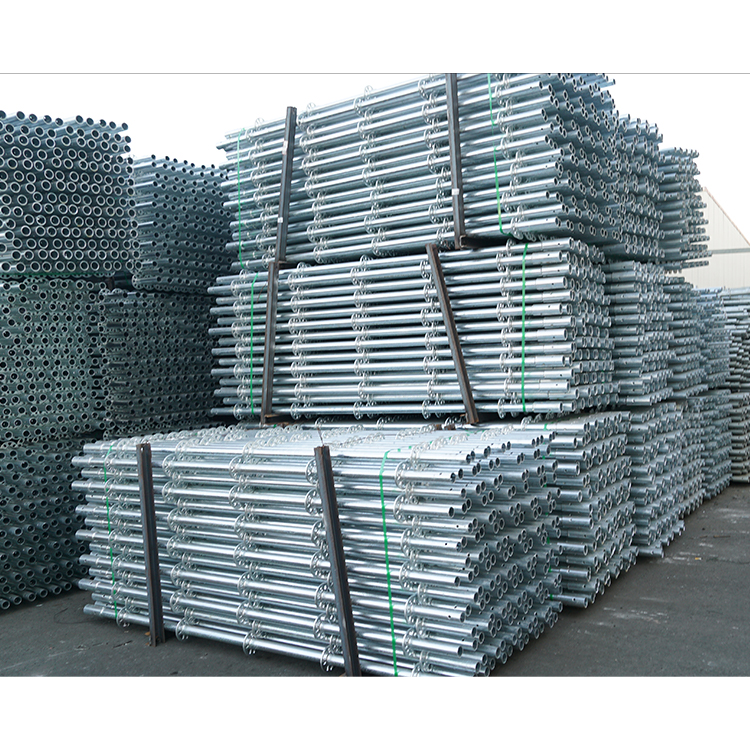

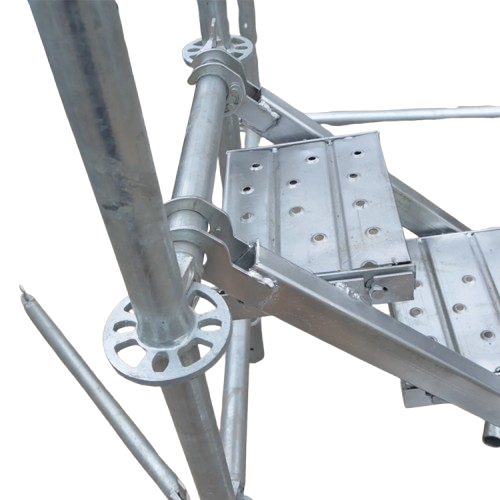

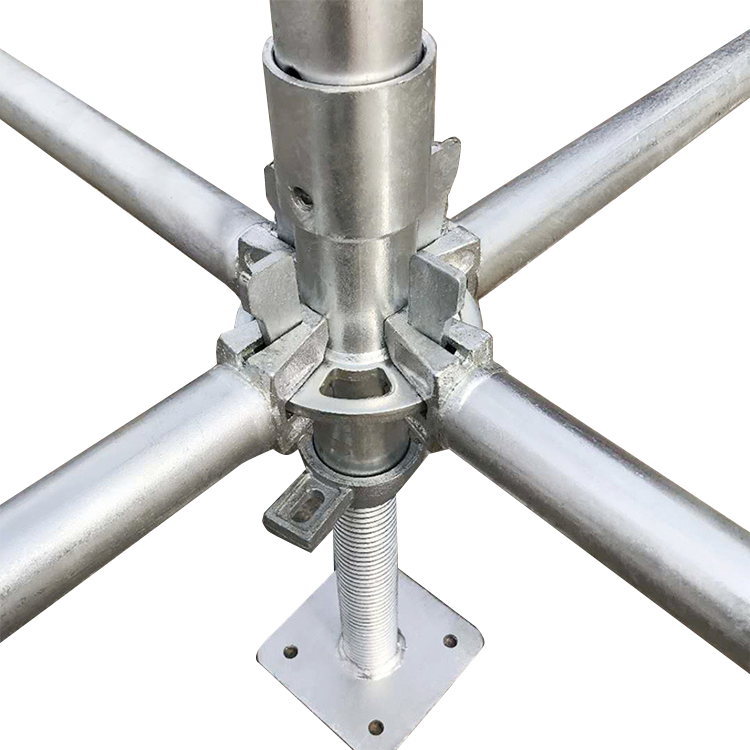

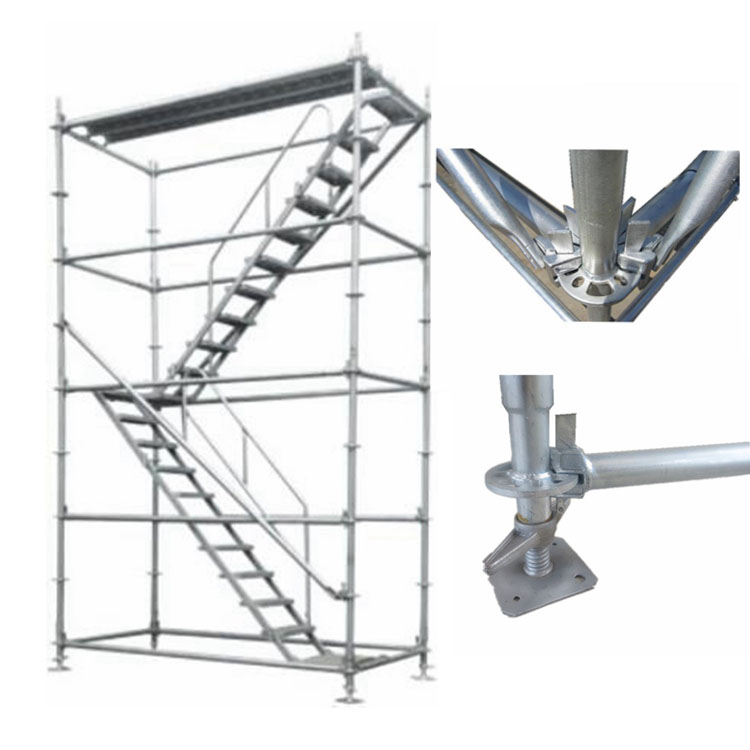

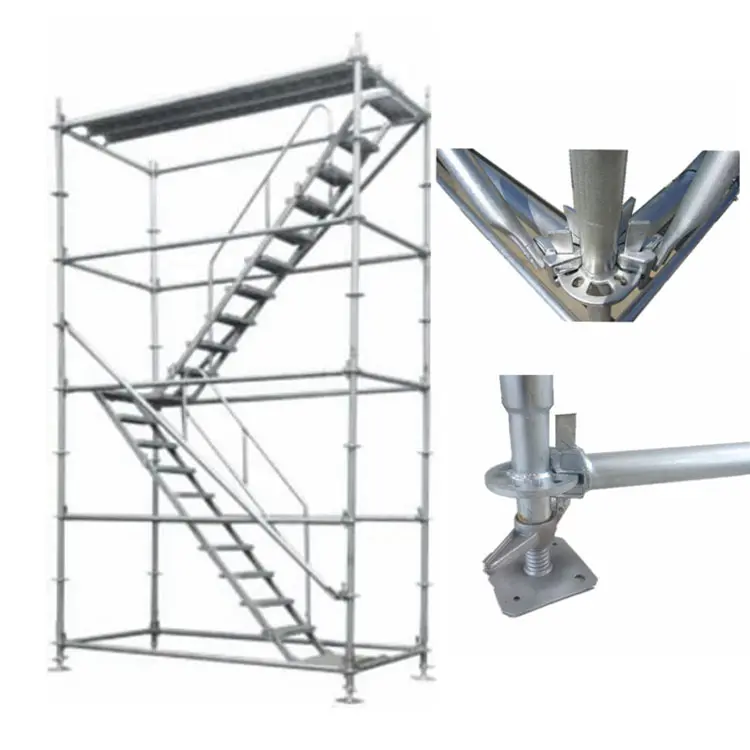

Product Gallery
Description |
Explanation |
||
Product |
Ringlock scaffolding System |
||
Type |
system standard |
Horizontal Rod |
Diagonal brace |
Size |
1000-2500mm |
300-1200mm |
600*1500-1800*2240 |
Wall thickness |
2.75mm |
3.25mm |
2.75mm |
Standard |
ISO 9001 EN 12810 / 12811 |
||
Surface treatment |
Hot-dip galvanizing/Electro-galvanizing/Spray painting |
||
Application |
Construction engineering, Bridges and transportation, industry and energy, etc |
||

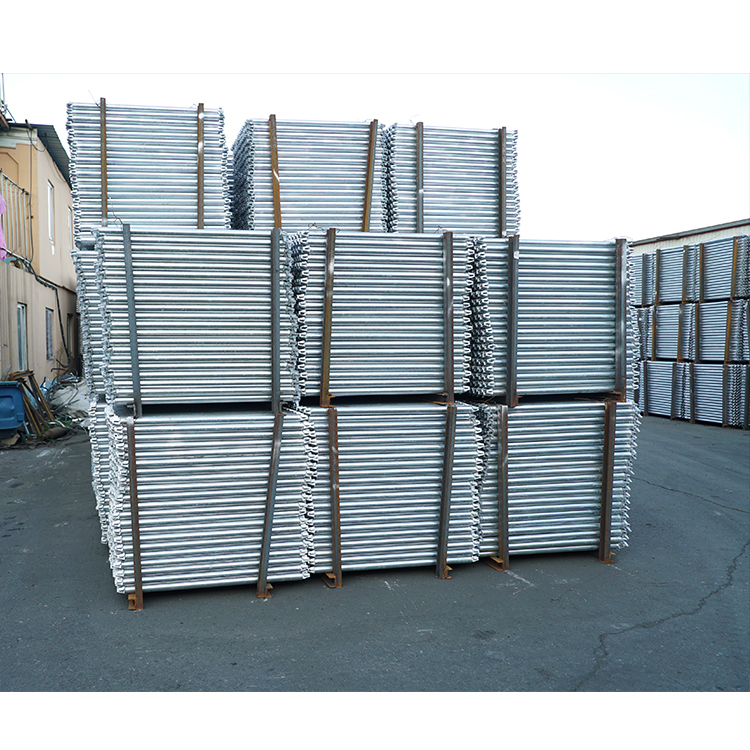

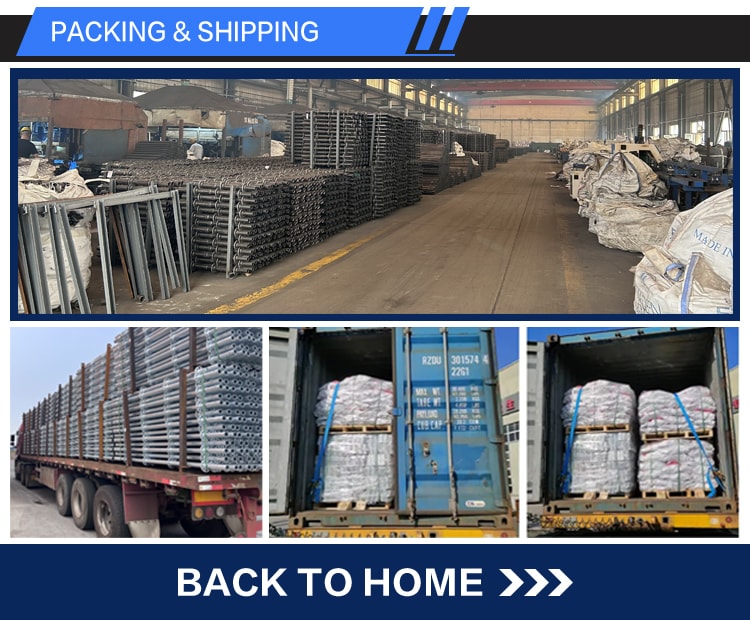

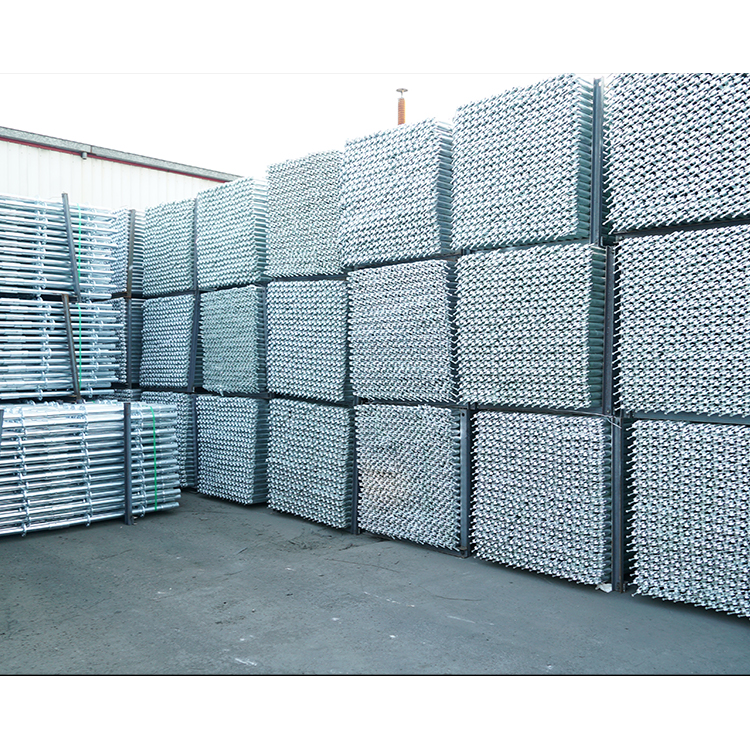

Packaging |
Steel Pallet、Plastic-Wrapped Bundles、Or package as per the customer's requirements |
||
Delivery time |
30 to 45 days from the date of drawing confirmation. |
||
Payment Terms |
T/T or L/C at sight |
||

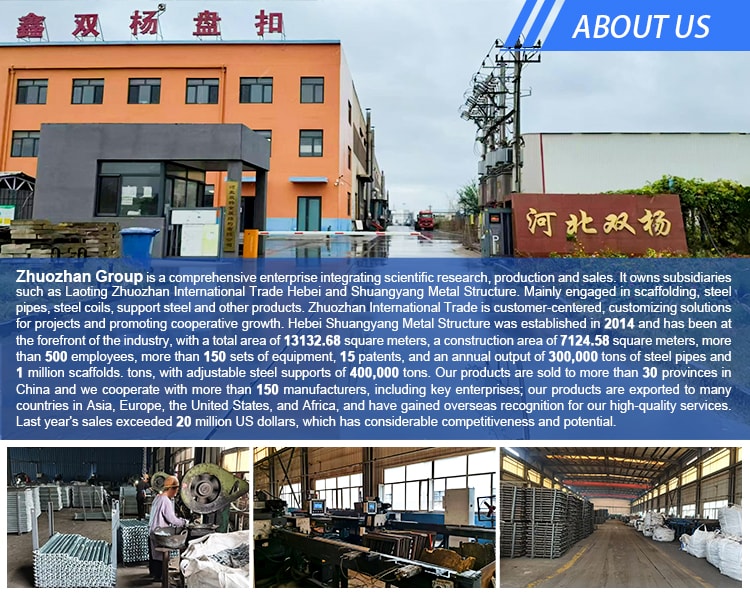

Why Choose Zhuozhan?
Choosing Zhuozhan means more than getting reliable scaffolding parts. You’re partnering with a manufacturer who brings 12+ years of experience, 40,000㎡ production space, full system customization, and a proven record of serving 200+ partners across 30+ provinces and 40+ countrie
Product parameters
|

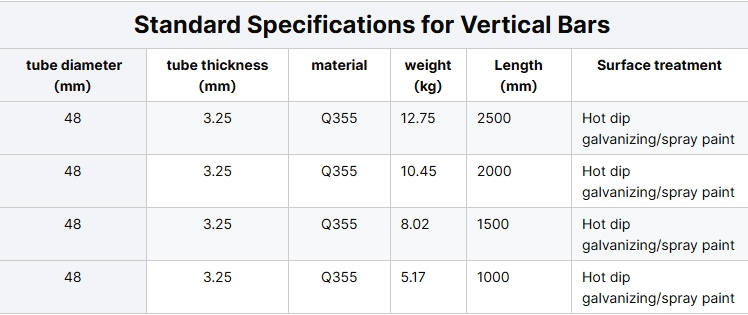

Standard Specifications for Vertical Bars |
|||||
|
Tube diameter(mm) |
Tube thickness(mm) |
Material |
Weight(kg) |
Length(mm) |
Surface treatment |
|
48 |
3.25 |
Q345 |
12.75 |
2500 |
Hot-dip galvanizing80μm |
|
48 |
3.25 |
Q345 |
10.45 |
2000 |
Hot-dip galvanizing80μm |
|
48 |
3.25 |
Q345 |
8.02 |
1500 |
Hot-dip galvanizing80μm |
|
48 |
3.25 |
Q345 |
5.17 |
1000 |
Hot-dip galvanizing80μm |
|

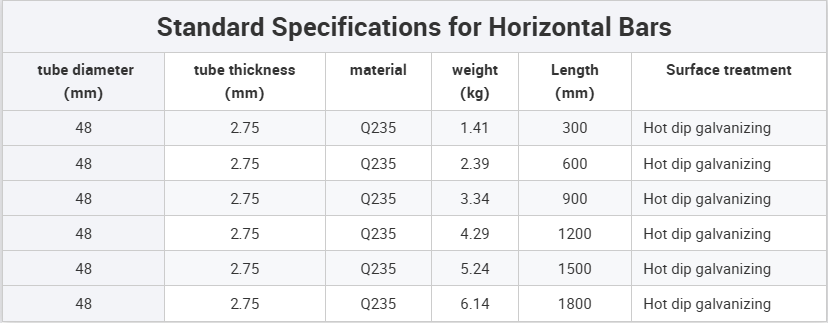

Standard Specifications for Horizontal Bars |
|||||
|
Tube diameter(mm) |
Tube thickness(mm) |
Material |
Weight(kg) |
Length(mm) |
Surface treatment |
|
48 |
2.75 |
Q345 |
1.41 |
300 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q345 |
2.39 |
600 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q345 |
3.34 |
900 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q345 |
4.29 |
1200 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q345 |
5.24 |
1500 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q345 |
6.14 |
1800 |
Hot-dip galvanizing80μm |
|

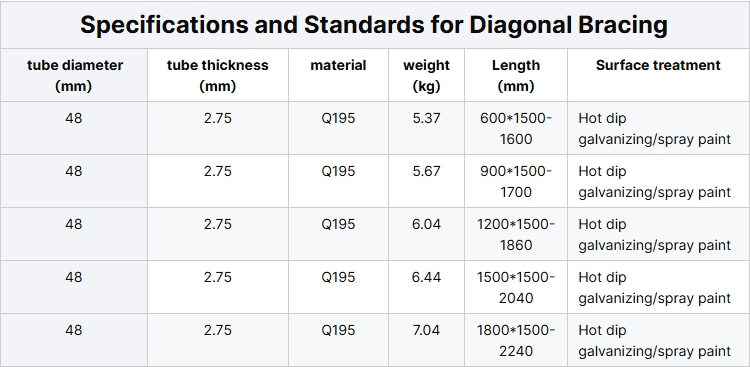

Specifications and Standards for Diagonal Bracing |
|||||
|
Tube diameter(mm) |
Tube thickness(mm) |
Material |
Weight(kg) |
Length(mm) |
Surface treatment |
|
48 |
2.75 |
Q345 |
5.37 |
600*1500-1600 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q345 |
5.67 |
900*1500-1700 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q345 |
6.04 |
1200*1500-1860 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q345 |
6.44 |
1500*1500-2040 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q345 |
7.04 |
1800*1500-2240 |
Hot-dip galvanizing80μm |
Standard scaffolding project case
The construction project of the exit of Lujiazui Station on Shanghai Metro Line 14
Project Background:
As a key rail transit project in Shanghai, the construction of the Lujiazui Station exit is confronted with a complex environment featuring a limited site and cross-construction between underground and above-ground areas. Safety and efficiency have become the key factors in the construction.
Construction requirements:
The scaffolding structure should adapt to the limited underground space and have a compact layout.
Provide multi-level operation platforms to support equipment installation and maintenance;
Ensure the safety of construction workers and avoid congestion at the site;
The scaffolding should be easy to adjust and dismantle quickly to accommodate the construction nodes of the subway.
Zhuozhan's durable modular scaffolding helped ensure the safety, stability and on-time delivery of this project.
FAQ
Q1: What kind of projects can use ringlock scaffolding?

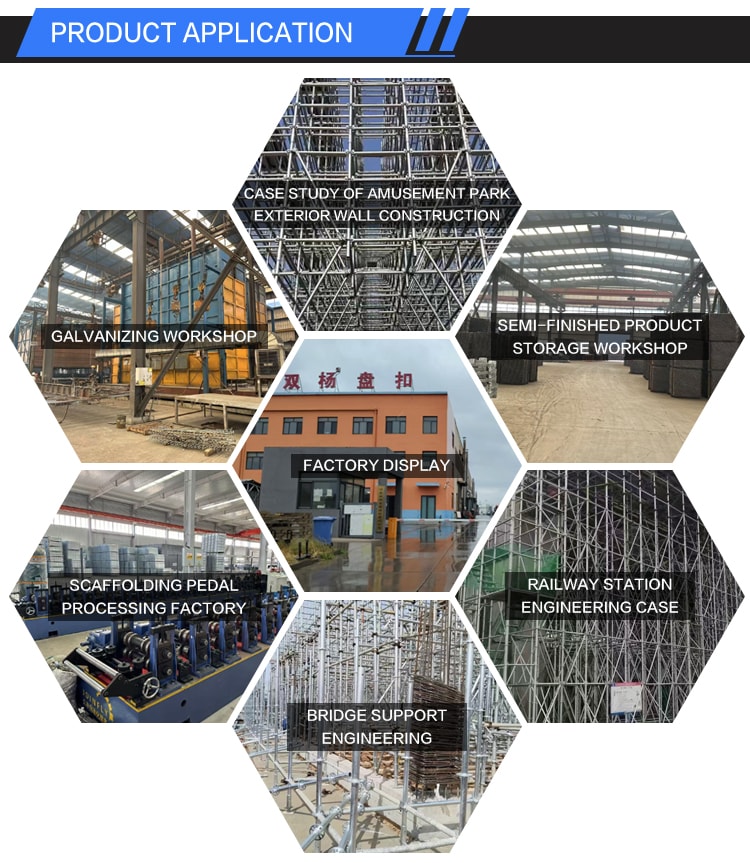

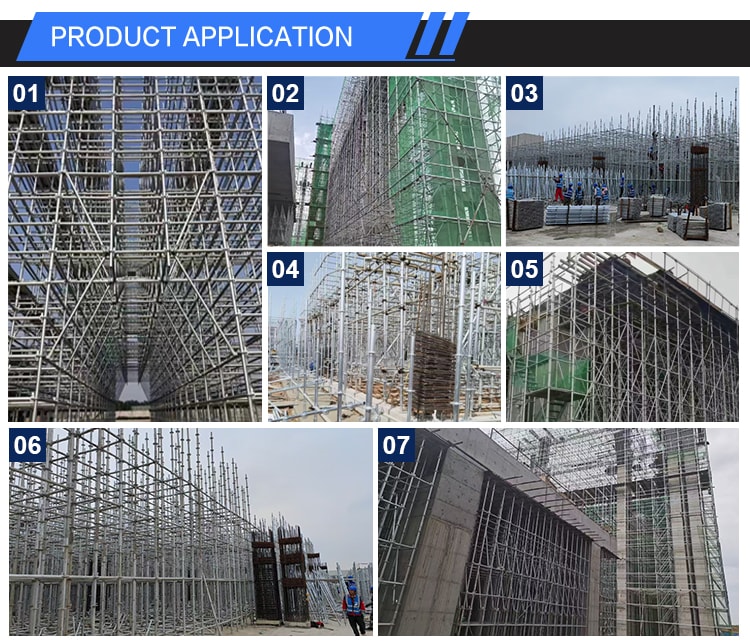

Ringlock scaffolding is widely used in high-rise buildings, bridge maintenance, subway construction, and industrial plants. Its flexible and modular structure makes it suitable for both large-scale and complex environments.
Q2: How high can your ringlock scaffolding be built?
Our system can be safely erected up to 50 meters or more. For special high-rise projects, we provide engineering calculations and design support to ensure safety and compliance.
Q3: Do you provide project-specific scaffolding solutions?
A: Recommended. To know assembly sequence, height/span adjustment, ensure proper connection, avoid errors.
Q4: What certifications can you provide?
We provide CE certificates, SGS/BV test reports, and technical datasheets. Our scaffolding meets international export and safety standards.
