Versatile Customizable Frame Scaffolding for Different projects
From building renovations to industrial maintenance and event staging, our modular frame scaffolding delivers stable, adaptable platforms. Custom sizes and finishes make it suitable for any environment. Designed for quick assembly and long-lasting durability, it ensures safety and efficiency on every project. Its versatile compatibility with ladders, wheels, and stabilizers allows tailored solutions for any workspace.

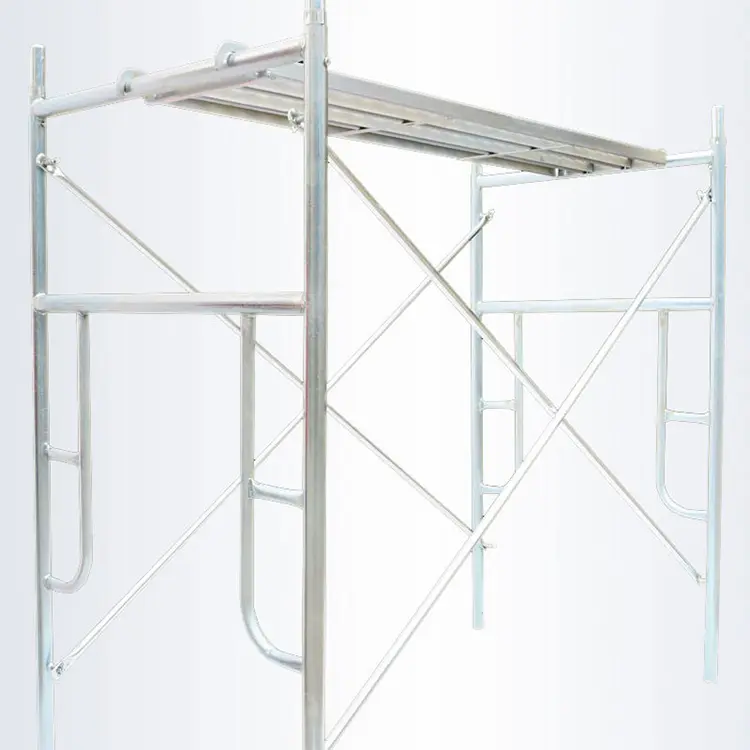

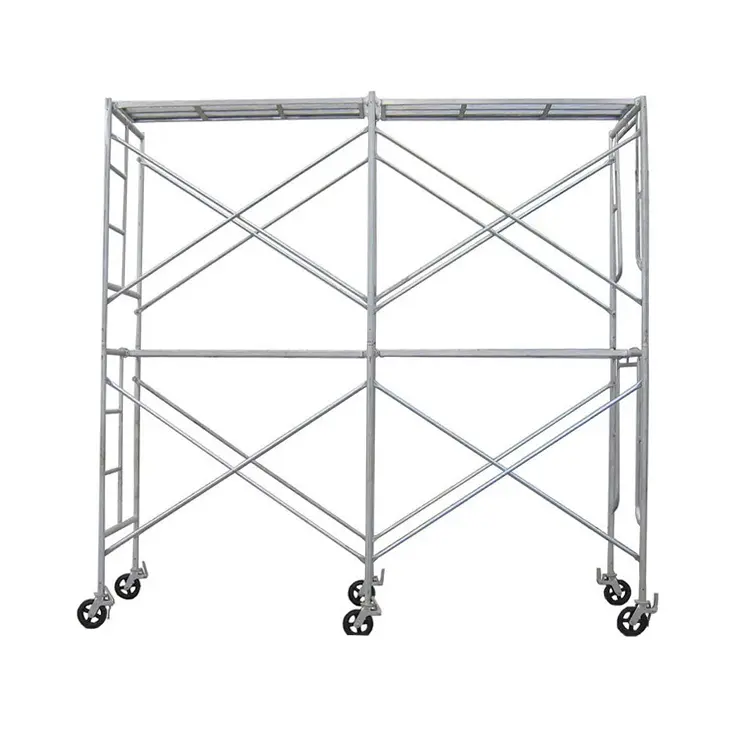

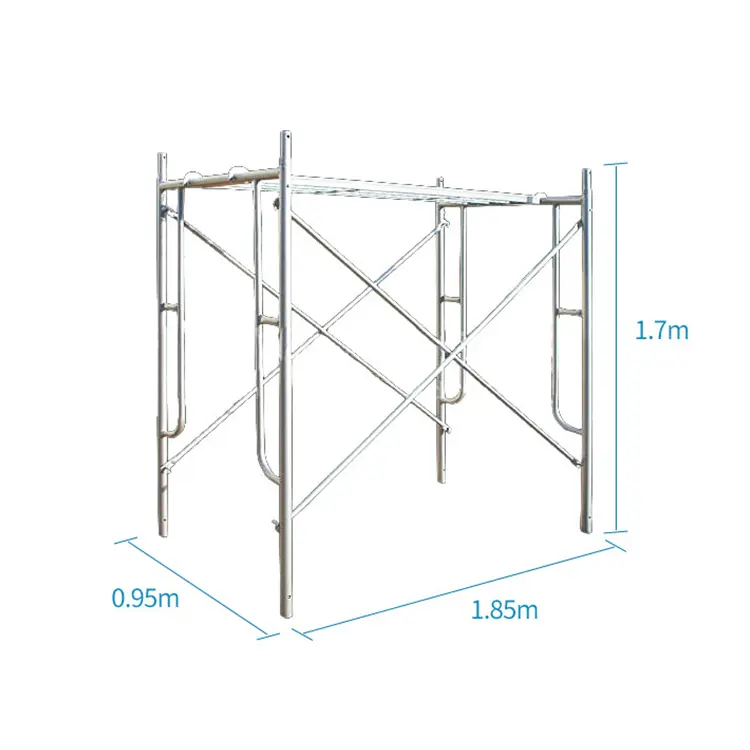

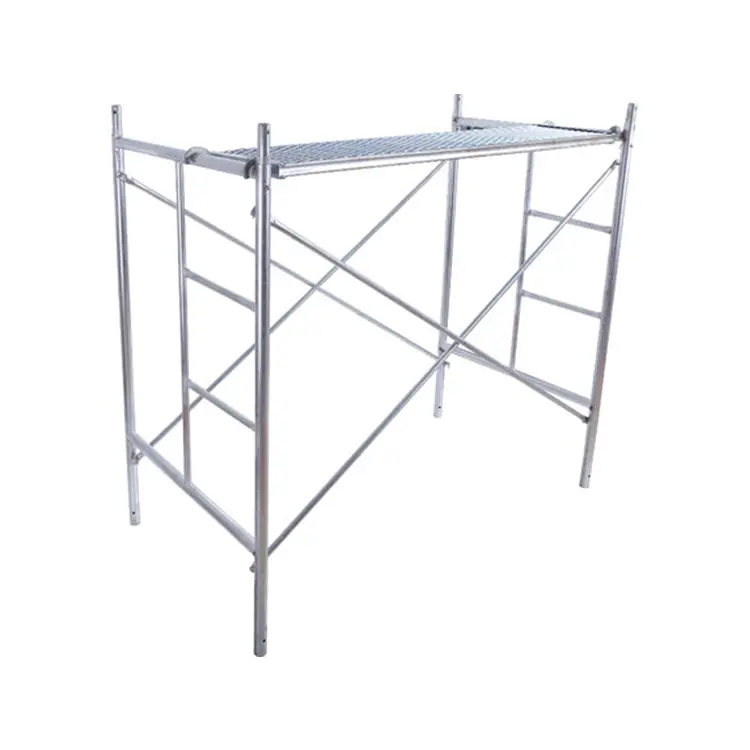

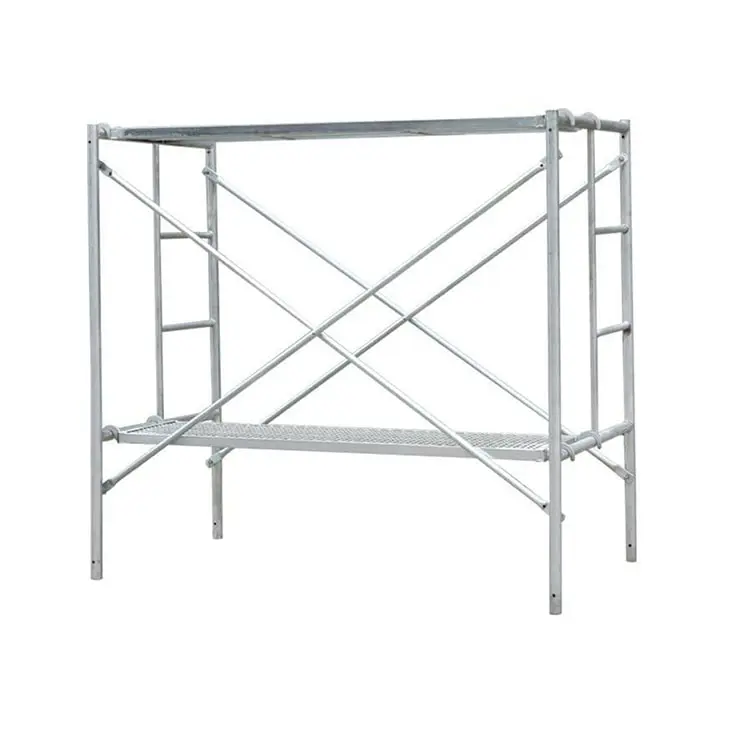

Product Overview
Our modular frame scaffolding is designed to adapt to a wide range of project requirements, from single-level renovation tasks to multi-level industrial setups. With customizable sizes and surface finishes, it provides safe, stable, and flexible working platforms for any environment.
Key Features
Modular & Flexible Design
Easily assemble and disassemble frames for single- or multi-level configurations. Modular design allows rapid adjustment to project-specific layouts.
Supports Single- and Multi-Level Platforms
Robust steel construction supports multiple levels, ideal for construction, maintenance, or event setups. Reinforced joints and cross braces enhance stability under heavy loads.

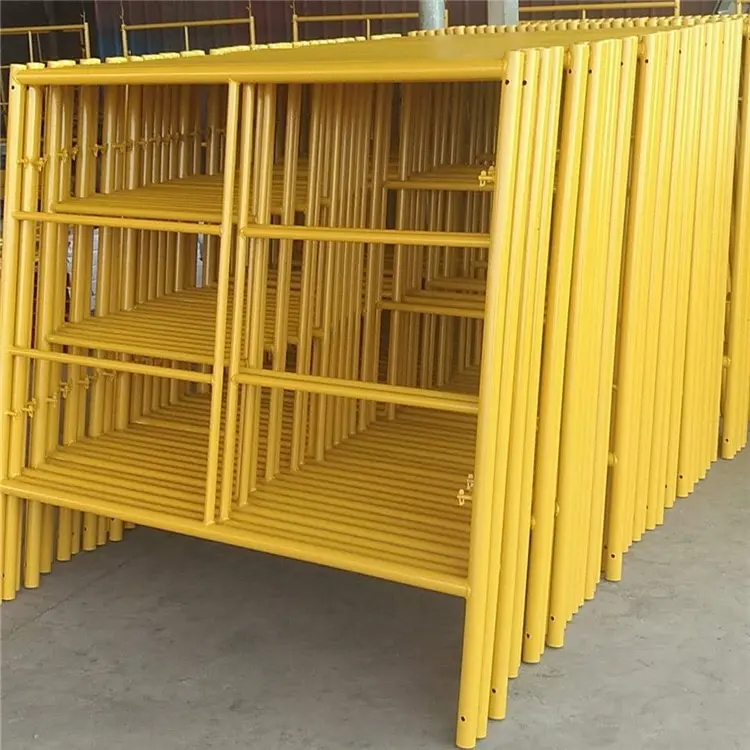

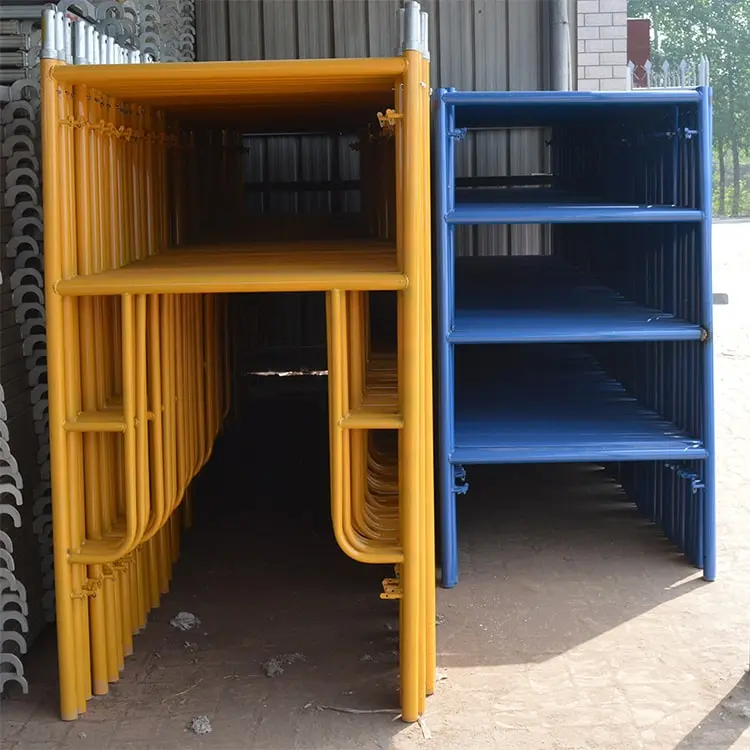

Customizable Finishes
Available in hot-dip galvanized coating (≥80μm zinc) or powder-coated finishes, offering corrosion resistance and long-term durability for indoor and outdoor environments.
Easy Integration with Accessories
Compatible with ladders, wheels, stabilizers, guardrails, and other scaffolding accessories to create tailored solutions for different projects.
Technical Specifications
Product Name |
scaffold Vertical Bars |
scaffold Horizontal Bars |
Product Name |
scaffold Vertical Bars |
scaffold Horizontal Bars |
|
762x1700mm Eight-shape frame Scaffold |
φ42x2.2mm |
φ25x1.5mm |
1219x1524mm Frame scaffold |
φ42x2.4mm |
φ25x1.5mm |
|
φ42x2.0mm |
φ25x1.5mm |
|
φ42x2.2mm |
φ25x1.5mm |
|
φ42x1.8mm |
φ25x1.5mm |
|
φ42x2.0mm φ42x1.8mm |
φ25x1.5mm φ25x1.5mm |
|
914x914mm Half rack frame scaffold |
φ42x2.2mm |
φ25x1.5mm |
1219x1700 mm Frame scaffold |
φ42x2.4mm |
φ25x1.5mm |
|
φ42x2.0mm φ42x2.2mm |
φ25x1.5mm φ42x2.0mm |
|
φ42x2.2mm φ42x2.0mm |
φ25x1.5mm φ25x1.5mm |
|
φ42x2.4mm |
φ25x1.5mm |
|
φ42x1.8mm |
φ25x1.5mm |
|
914x1700mm Frame scaffold |
φ42x2.2mm φ42x2.0mm |
φ25x1.5mm φ25x1.5mm |
1219x1930mm Frame scaffold |
φ42x2.4mm φ42x2.0mm |
φ25x1.5mm φ25x1.5mm |
|
φ42x1.8mm |
φ25x1.5mm |
|
|
|
|
φ42x2.0mm |
φ42x2.0mm |
|
φ42x1.8mm |
φ25x1.5mm |
|
914x1700mm ladder rack |
φ42x2.2mm φ42x2.0mm |
φ25x1.5mm φ25x1.5mm |
1219x1219mm Half rack frame scaffold |
φ42x2.0mm
|
φ25x1.5mm
|
|
φ42x1.8mm φ42x2.0mm |
φ25x1.5mm φ12x2.0mm |
|
φ42x2.2mm
|
φ25x1.5mm |
|
1219x914mm Half rack frame scaffold |
φ42x2.0mm φ42x1.8mm |
φ42x2.0mm φ42x1.8mm |
1219x1700mm ladder rack |
φ42x2.0mm φ42x1.8mm |
φ25x1.5mm φ25x1.5mm |
|
φ42x2.2mm |
φ42x2.0mm |
|
φ42x2.2mm |
φ42x2.0mm |
|
|
|
1219x1930mm ladder rack |
φ42x2.0mm φ42x2.2mm |
φ25x1.5mm φ42x2.0mm |
|
|
|
|
φ42x2.0mm |
φ25x1.5mm |
Applications
Construction Sites: Residential and commercial building projects requiring flexible scaffolding.
Renovation Projects: Exterior façade repairs, painting, or retrofitting.
Event Staging: Temporary platforms for exhibitions, stages, or concerts.
Industrial Platforms: Maintenance work in factories, warehouses, and plants.
Quality Assurance
Material: Made of Q235/Q355 high-strength structural steel with a yield strength of ≥ 235–355 MPa, ensuring durability.
Surface Treatment: Hot-dip galvanizing with a thickness of ≥ 80–100 μm (can withstand ≥ 1000 hours of salt spray testing without noticeable rust); or epoxy powder coating with a thickness of ≥ 60 μm, extending corrosion resistance by 5–8 years.
Testing Standards: ≥ 5% of each batch is randomly sampled and subjected to a static load test of ≥ 500 kg per frame and ultrasonic testing of welds.
Certification: Factory quality inspection reports are provided, and third-party testing by SGS/TUV is available. Compliant with OSHA 1926.451 and EN 12810/12811 standards.
Packaging & Delivery
Standard Packaging: Each set of scaffolding is strapped with four steel straps and wrapped with waterproof film to prevent moisture and rust, making it suitable for long-distance ocean transport.
Container Loading
20GP Container: Can hold approximately 200–250 sets (standard 6ft x 5ft frames).
40HC Container: Can hold approximately 450–500 sets, increasing loading efficiency by 30%.
Lead Time:
Regular Sizes in Stock: Ship within 7–15 days.
Custom Orders: Delivery time is approximately 20–30 days, depending on quantity and design.
Global Shipping: We support various international trade methods including FOB, CIF, and DDP, shipping directly to major ports or customer warehouses. We export over 500 containers annually.
FAQ
Q1: How many workers are needed to assemble a bay of frame scaffolding?
A: Usually 2 workers can assemble one bay in just a few minutes without special tools.
Q2: Is the frame scaffolding suitable for outdoor projects?
A: Yes. With galvanized or powder-coated finishes, it resists rust and adapts to outdoor environments.
Q3: Can I buy individual frames or accessories?
A: Yes, we supply both complete sets and individual parts like frames, braces, planks, and casters.
Q4: What safety standards does it meet?
A: Our scaffolding complies with EN12810/12811 and OSHA standards for safe use in global projects.
Q5: Can it be used for event staging or only construction?
A: It’s versatile—commonly used in building maintenance, industrial jobs, and event stages.
Q6: How long is the delivery time?
A: Standard models are available for quick shipment, while custom sizes may take 15–25 days.
