Q345 Steel ringlock scaffolding for Building Construction
Attribute |
Description |
Product： |
Economy ring-lock scaffolding |
Material： |
Q235 Steel |
Outer diameter: |
48mm |
Wall thickness: |
2.75mm |
Hot-dip Galvanized: |
Zn coating thickness: 40-60μm |
enforce standards： |
EN 12810 / 12811 |
Welding process： |
High-frequency welding |
Applicable scenarios： |
Industrial maintenance platform |
Product Overview
Zhuozhan’s Economy Ringlock Scaffolding is a budget-friendly solution for short-term or light-duty
projects. Made from Q235 steel with basic corrosion protection, it meets essential safety and structural needs while keeping costs low.
Ideal for temporary platforms, event setups, and interior construction, this system is compatible with standard ringlock connections and supports fast, tool-free assembly.
Key Features of Ringlock Scaffolding System
1. Budget-Friendly Investment
Made with Q235 steel and a simplified finish, it significantly reduces upfront costs—ideal for projects with limited budgets.
2.Reusable & Easy to Store
Lightweight structure with reusable components that are easy to transport, stack, and store—perfect for rental businesses.
3.Sufficient Strength for Light-Duty Use
Meets basic structural and safety needs for temporary platforms, interior jobs, event staging, and small-scale construction.
4. Compatible with Standard Systems
Fully compatible with Layher-type ringlock systems and most common accessories, allowing seamless integration into existing inventory.

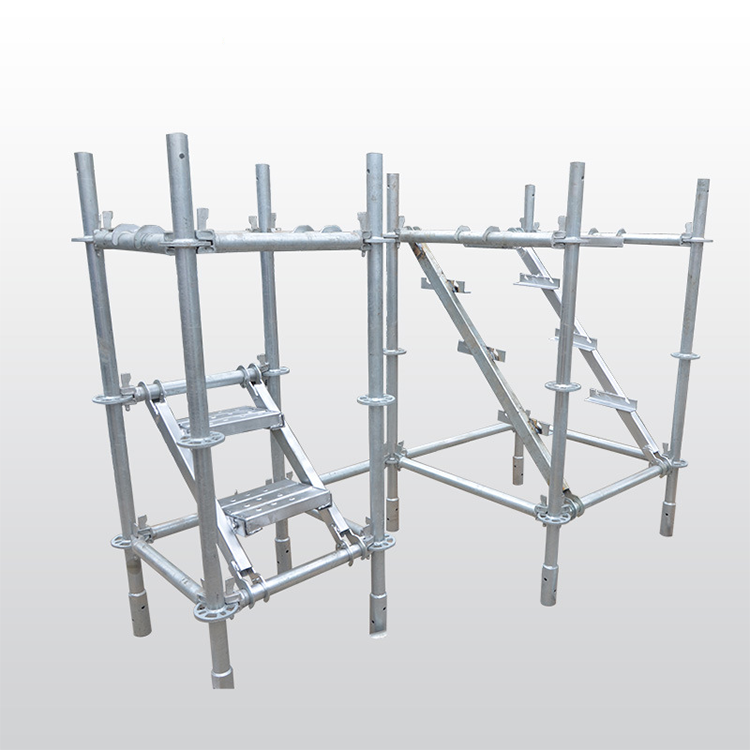

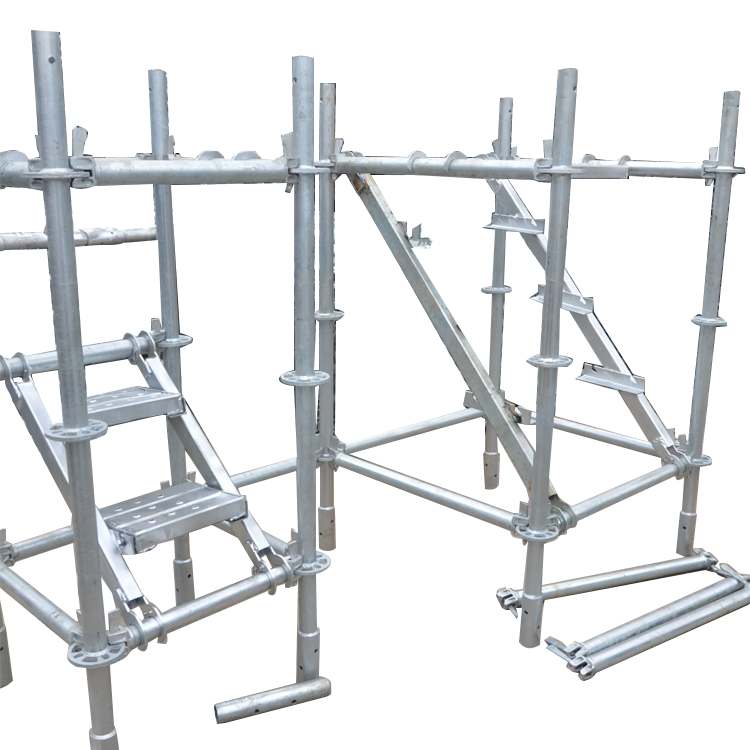

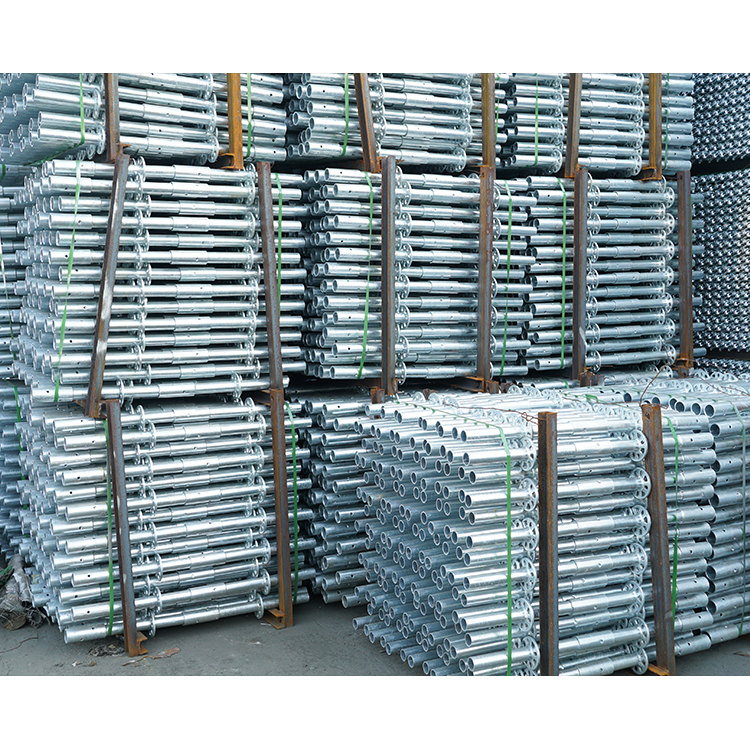

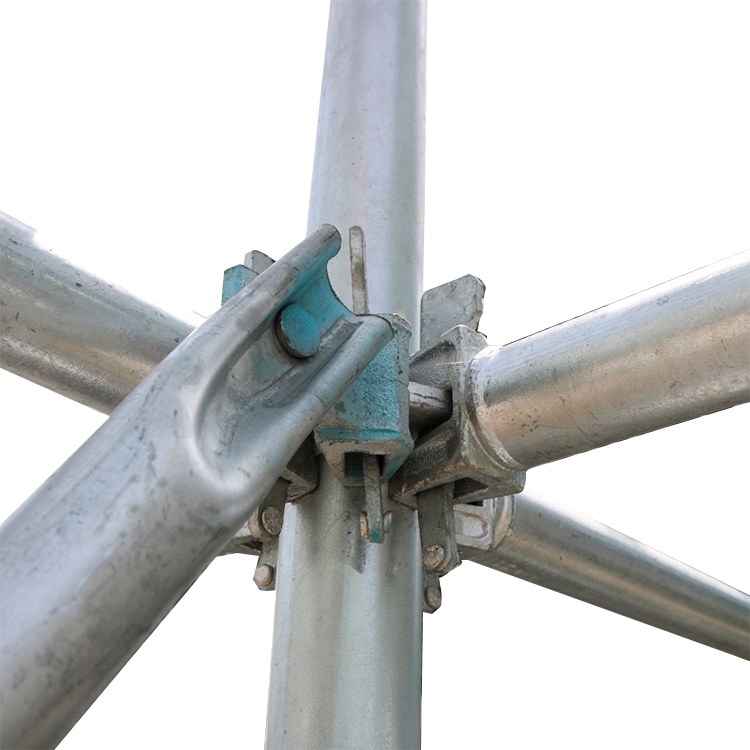

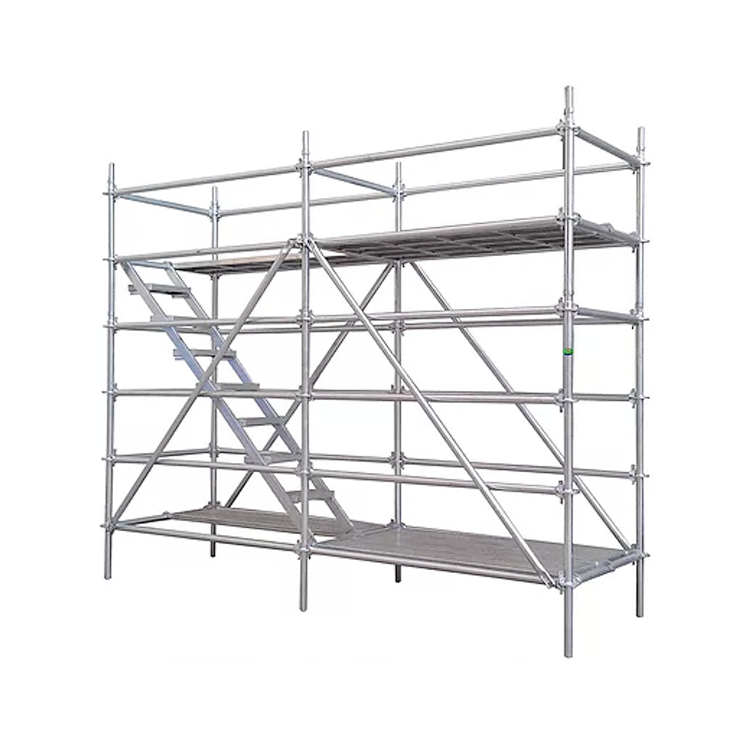

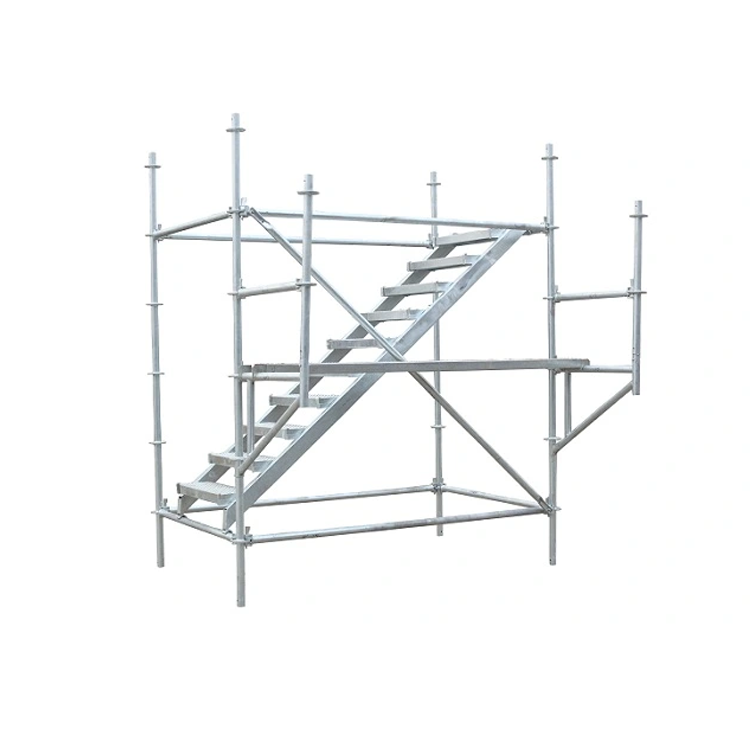

Product Gallery
|
Description |
Explanation |
||
|
Product |
Ringlock scaffolding System |
||
|
Type |
system standard |
Horizontal Rod |
Diagonal brace |
|
Size |
1000-2500mm |
300-1200mm |
600*1500-1800*2240 |
|
Wall thickness |
2.75mm |
3.25mm |
2.75mm |
|
Standard |
ISO 9001 EN 12810 / 12811 |
||
|
Surface treatment |
Hot-dip galvanizing/Electro-galvanizing/Spray painting |
||
|
Application |
Construction engineering, Bridges and transportation, industry and energy, etc |
||
|
Packaging |
Steel Pallet、Plastic-Wrapped Bundles、Or package as per the customer's requirements |
||
|
Delivery time |
30 to 45 days from the date of drawing confirmation. |
||
|
Payment Terms |
T/T or L/C at sight |
||
Environmental Protection and Reusability
Sustainability & Environmental Responsibility
At Zhuozhan, we believe that durability and sustainability go hand in hand. Our scaffolding systems are not only built to last but also designed with the environment in mind.
95% Recyclable Materials
All primary components are made of structural steel, which is up to 95% recyclable at the end of its service life. This significantly reduces construction waste and supports circular use in infrastructure projects.
Energy-Efficient Galvanizing
Our hot-dip galvanizing process follows optimized energy-saving procedures. Waste heat is recycled within the production line, and we continuously monitor emissions to minimize environmental impact.
Product parameters
|
Standard Specifications for Vertical Bars |
|||||
|
Tube diameter(mm) |
Tube thickness(mm) |
Material |
Weight(kg) |
Length(mm) |
Surface treatment |
|
48 |
3.25 |
Q235 |
12.75 |
2500 |
Hot-dip galvanizing80μm |
|
48 |
3.25 |
Q235 |
10.45 |
2000 |
Hot-dip galvanizing80μm |
|
48 |
3.25 |
Q235 |
8.02 |
1500 |
Hot-dip galvanizing80μm |
|
48 |
3.25 |
Q235 |
5.17 |
1000 |
Hot-dip galvanizing80μm |
|
Standard Specifications for Horizontal Bars |
|||||
|
Tube diameter(mm) |
Tube thickness(mm) |
Material |
Weight(kg) |
Length(mm) |
Surface treatment |
|
48 |
2.75 |
Q235 |
1.41 |
300 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
2.39 |
600 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
3.34 |
900 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
4.29 |
1200 |
Hot-dip galvanizing80μm |
|
Specifications and Standards for Diagonal Bracing |
|||||
|
Tube diameter(mm) |
Tube thickness(mm) |
Material |
Weight(kg) |
Length(mm) |
Surface treatment |
|
48 |
2.75 |
Q235 |
5.37 |
600*1500-1600 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
5.67 |
900*1500-1700 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
6.04 |
1200*1500-1860 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
6.44 |
1500*1500-2040 |
Hot-dip galvanizing80μm |
|
48 |
2.75 |
Q235 |
7.04 |
1800*1500-2240 |
Hot-dip galvanizing80μm |
Economical ringlock scaffold project case
Urban Village Renovation Project in Chongfu Town, Tongxiang City, Jiaxing City, Zhejiang Province (September 2024)
Project Background:
This project is the renovation of residential buildings in the old city. The building height is generally below 15 meters. The construction period is short and the budget is limited. It is necessary to achieve the optimal cost configuration while ensuring construction safety.
Economical ring-lock scaffolding (Q235 material, hot-dip galvanized zinc layer thickness 40μm)
Application advantages:
High cost performance: low material cost, suitable for small and medium-sized projects or budget-sensitive projects.
Modular structure: standardized components are easy to transport and quickly build, saving construction time.
Reusable: can be used for multiple small and medium-sized projects with a short payback period.
Compliant with national standards: meets domestic construction safety regulations and meets stability standards.
Application advantages:
High cost performance: low material cost, suitable for small and medium-sized projects or budget-sensitive projects.
Modular structure: standardized components are easy to transport and quickly build, saving construction time.
Reusable: can be used for multiple small and medium-sized projects with a short payback period.
Compliant with national standards: meets domestic construction safety regulations and meets stability standards.
Customer feedback:
Under budget constraints, this economical scaffolding saved us more than 20% of material costs without compromising on construction safety. It is very cost-effective.
FAQ
Q: What is an "economical" scaffolding?
Economical scaffolding usually uses Q235 carbon steel material, and the surface is hot-dip galvanized (the zinc layer thickness is about 40μm). While ensuring basic bearing capacity and safety, it reduces material costs and is suitable for small and medium-sized projects or projects with limited budgets.
Q: What is the difference between it and the standard version (such as Q345/80μm)?
The main difference lies in the material strength and anti-corrosion layer thickness:
Economical type: Q235 + 40μm zinc layer (cost-effective)
Standard type: Q345 + 80μm zinc layer (more durable, suitable for high-frequency use and heavy-load scenarios)
Q: Is safety guaranteed?
Yes. Although it is an economical configuration, the design is still based on national standards (such as "JGJ 130" and "GB 20686", etc.). As long as it is correctly erected and used in a standardized manner, construction safety can be ensured.
Q: Can the economical scaffolding be reused?
Yes. As long as it is used properly and stored properly, the economical buckle rack can be used repeatedly in multiple similar working conditions, with a good return on investment.
Q Is hot-dip galvanizing 40μm enough for corrosion protection?
For engineering projects with a short cycle and moderate frequency of use, the 40μm zinc layer can effectively resist corrosion from outdoor rain and moisture. If the project is mostly in coastal or high-humidity environments, it is recommended to choose a higher protection level.
