Cuplock scaffold System for Working Frame and Support Frame

In the Cuplock Scaffolding System, Work Frames and Support Frames play vital roles in meeting diverse construction needs.

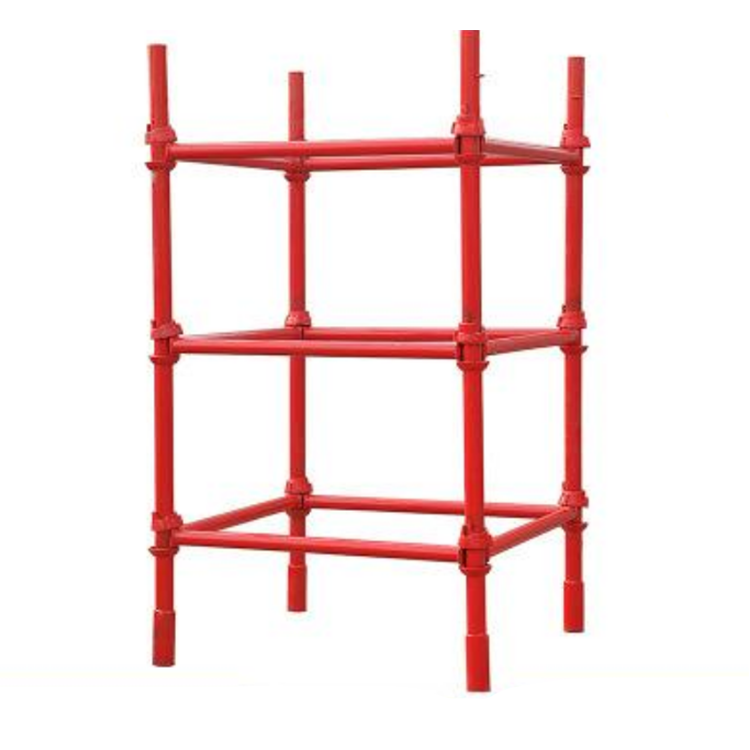

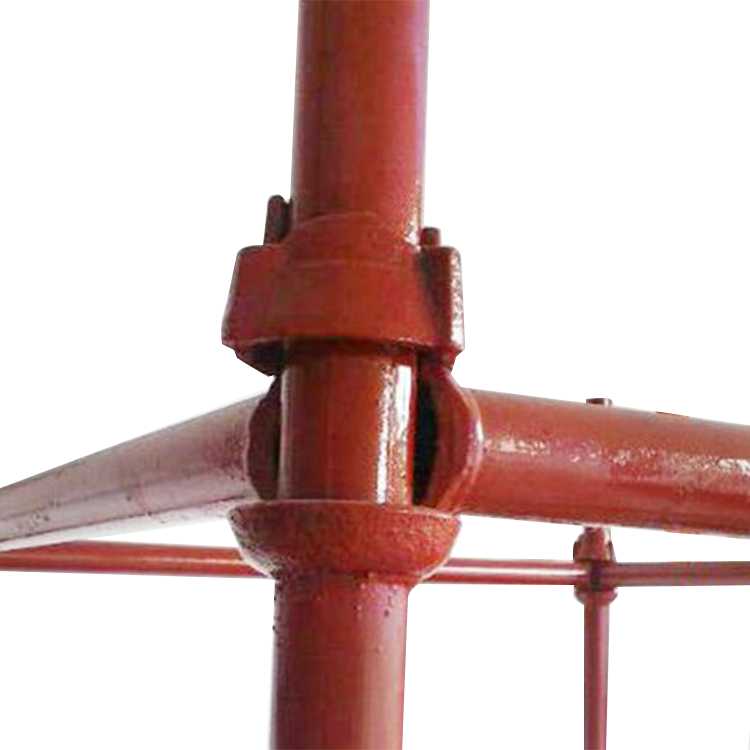

Work Frames are designed to create safe and spacious working platforms for construction crews. They’re ideal for façade works, wall finishing, bridge construction, and any tasks requiring large, stable platforms at height. The rigid cuplock connections ensure excellent stability and load-bearing capacity, even in complex or high-rise structures.

Support Frames are engineered for heavy-duty applications, such as high shoring systems, cantilever scaffolds, and industrial installations. These frames can be easily adjusted in height and layout to handle significant loads and adapt to varying site conditions. Their robust design makes them perfect for large spans and high-load requirements.

Zhuozhan’s Cuplock Scaffolding System combines standardized components with flexible configurations, allowing Work Frames and Support Frames to be assembled quickly and safely, boosting efficiency on any project.

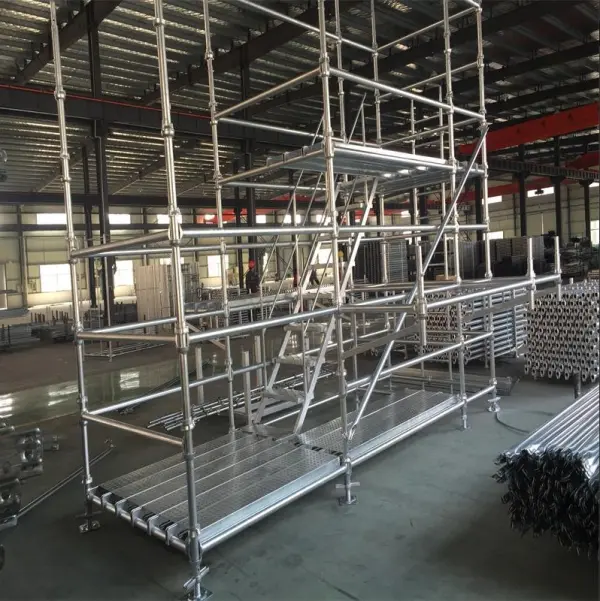

Work racks in Cuplock scaffolding systems are widely used across various construction and industrial environments where stable and elevated platforms are essential.With fast installation, strong stability, and excellent adaptability, Zhuozhan’s Cuplock Work Racks help contractors improve safety and efficiency in even the most demanding site conditions.

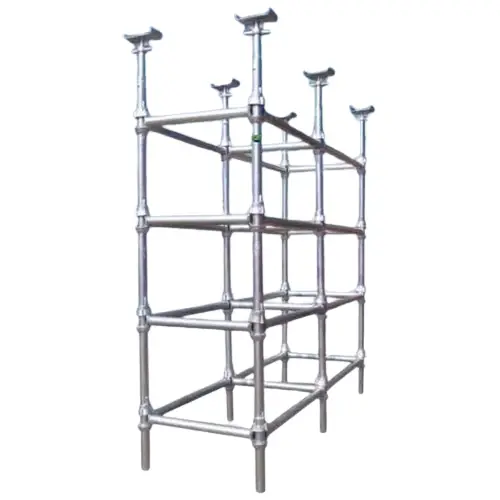

Support Scaffold Frames are crucial elements in Cuplock scaffolding systems, engineered to handle heavy loads and provide strong structural support for various construction tasks.

These frames are specially designed for applications such as high shoring systems, heavy-duty concrete formwork, and large-span support structures. Their robust construction ensures exceptional stability, even under significant vertical and horizontal loads.

Made from high-strength Q345 steel and protected by a hot-dip galvanized finish, Zhuozhan’s Support Scaffold Frames guarantee long-term durability and resistance to corrosion, making them ideal for demanding projects like bridges, tunnels, power plants, and industrial facilities.

Quick assembly and flexible layout options make these frames highly efficient, saving both time and labor costs on site.

48 Horizontal Rod

Material :Q355 Steel

Surface treatment:Hot dipped galvanized

Dimensions:Ф48*2.75/3.25mm

Theoretical weight：3.51/4.56/6.37/7.42kg

Effective length:600-1500 mm

Q1: What is a support scaffold frame used for?

Support scaffold frames are used to carry heavy loads and provide structural support in high shoring, bridge construction, tunnel formwork, and other heavy-duty applications.

Q2: How much load can a Cuplock support frame carry?

Depending on the setup and spacing, each vertical leg can safely support ≥ 40 kN (approximately 4 tons), meeting international safety standards like EN12810 and BS1139.
